OFTR-1000X660 OROFLEX® TERRAIN™ by Kuriyama | OFTR Series | Discharge Layflat Hose | Polyurethane | 10" Size | 10.100" Hose ID | Black | 660ft Length

Save $799.96

$14,857.96

$14,857.96 - $14,857.96

$14,857.96

$14,058.00

$14,058.00 - $14,058.00

$14,058.00

Kuriyama
OROFLEX® TERRAIN™ | OFTR Series | Discharge Layflat Hose

Built for high-volume fluid handling.

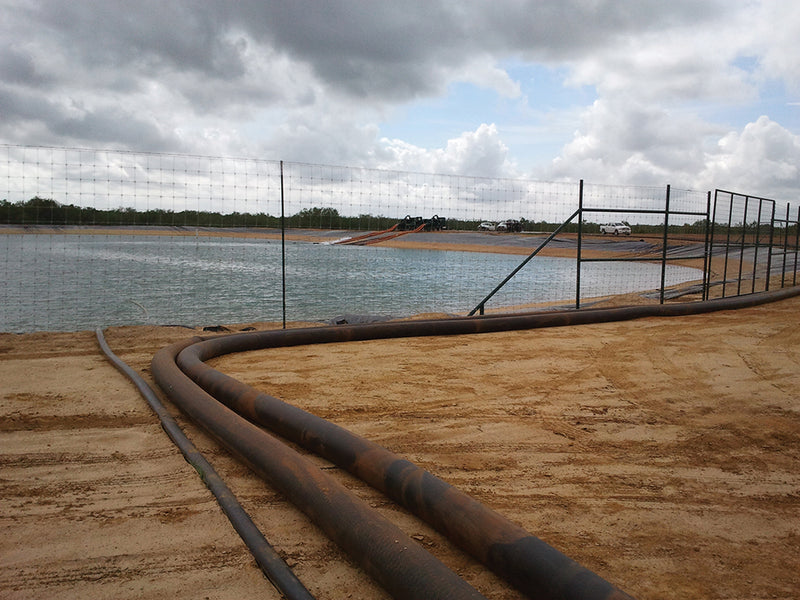

Ideal for dewatering, drinking water and manure transfer, mining, fracking, and emergency or general water supply applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 660 Foot

Specifications for Variant SKU: OFTR-1000X660 Kuriyama \| 660 \|
Brand:	OROFLEX TERRAIN
Series:	OFTR Series
Hose Color(s):	Black
Internal Diameter:	10.100in
Tubing Construction:	TPU
Cover Construction:	TPU

Other Features:
Applications:	Dewatering. Drinking water transport. Fluid transfer. Large volume water transfer including fracking. Manure transfer. Mining. Emergency water supply.

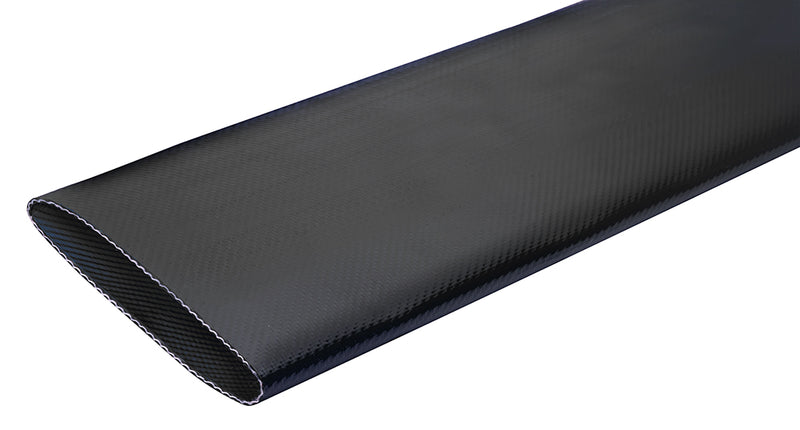

Construction:	Black polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range:	-58°F (-50°C) to +150°F (+65°C); Intermittent service to +175°F (+79°C)
Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products. Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting. Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points. Smooth TPU Tube - Provides low friction loss. Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses. Supreme UV and Ozone Resistance - For extreme UV and ozone conditions. Cost Efficient - Savings for 16" versus using 2 x 12" lines. Made in Europe.

Part Number 660ft	Size		Hose ID		Wall Thickness	Working Pressure (PSI)	Burst Pressure	Tensile Strength
Part Number 660ft	(in)	(mm)	(in)	(mm)	(in)	at 68°F	at 68°F	(lbs)
OFTR-800X660	8"	203.2mm	8.100"	206.0mm	0.165"	200 PSI	600 PSI	77,200 lbs
OFTR-1000X660	10"	254.0mm	10.100"	256.0mm	0.169"	200 PSI	500 PSI	99,200 lbs
OFTR-1200X660	12"	304.8mm	12.106"	307.5mm	0.185"	175 PSI	435 PSI	121,300 lbs
OFTRH-1200X660	12"	304.8mm	12.106"	307.5mm	0.185"	200 PSI	500 PSI	154,300 lbs
