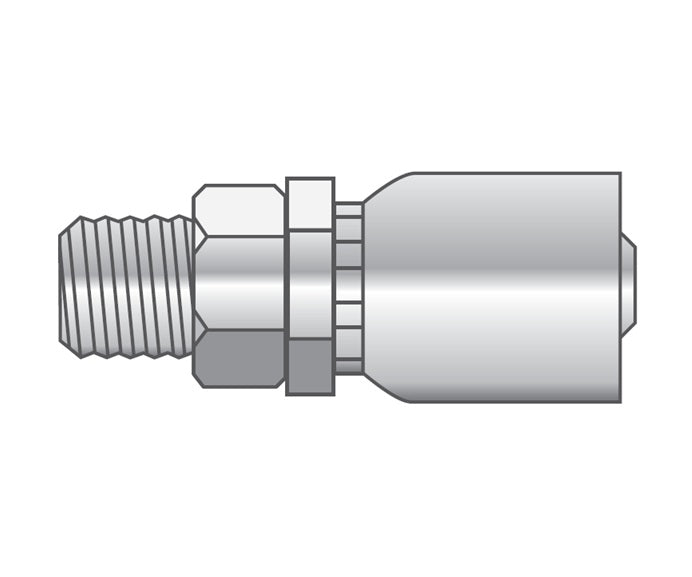

P-0604-MNPT Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -06 Hose ID x -04 Male NPTF Solid 60° Seat | Carbon Steel

P-0604-MNPT Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -06 Hose ID x -04 Male NPTF Solid 60° Seat | Carbon Steel | Pack of 5

Save $3.17 Save $3.17
$11.09
$11.09 - $11.09
$11.09
$7.92
$7.92 - $7.92
$7.92

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Male NPTF Solid 60° Seat
Specifications for Variant SKU: P-0604-MNPT Kuriyama | 5 |
Brand: Alfagomma, Piranhaflex
Series: P Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Male NPTF
Material(s): Carbon Steel
Compatible with the following Series: PF321TC Series
About P-Series Fittings:
  • One-piece non-skive crimp fitting for use with:
    • Piranhaflex™ PF321TC hose only.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Carbon Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) x TPI		 (mm) (mm) lbs/each
P-0202-MNPT 02 1/8" 3.2mm 02 1/8-27 18.0mm 12mm 0.04 lbs
P-0402-MNPT 04 1/4" 6.4mm 02 1/8-27 26.7mm 12mm 0.11 lbs
P-0404-MNPT 04 1/4" 6.4mm 04 1/4-18 31.1mm 17mm 0.12 lbs
P-0406-MNPT 04 1/4" 6.4mm 06 3/8-18 33.5mm 19mm 0.14 lbs
P-0504-MNPT 05 5/16" 7.9mm 04 1/4-18 29.8mm 17mm 0.15 lbs
P-0604-MNPT 06 3/8" 9.5mm 04 1/4-18 34.0mm 17mm 0.17 lbs
P-0606-MNPT 06 3/8" 9.5mm 06 3/8-18 34.1mm 19mm 0.17 lbs
P-0608-MNPT 06 3/8" 9.5mm 08 1/2-14 38.9mm 22mm 0.23 lbs
P-0806-MNPT 08 1/2" 12.7mm 06 3/8-18 31.0mm 19mm 0.26 lbs
P-0808-MNPT 08 1/2" 12.7mm 08 1/2-14 39.1mm 22mm 0.28 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
