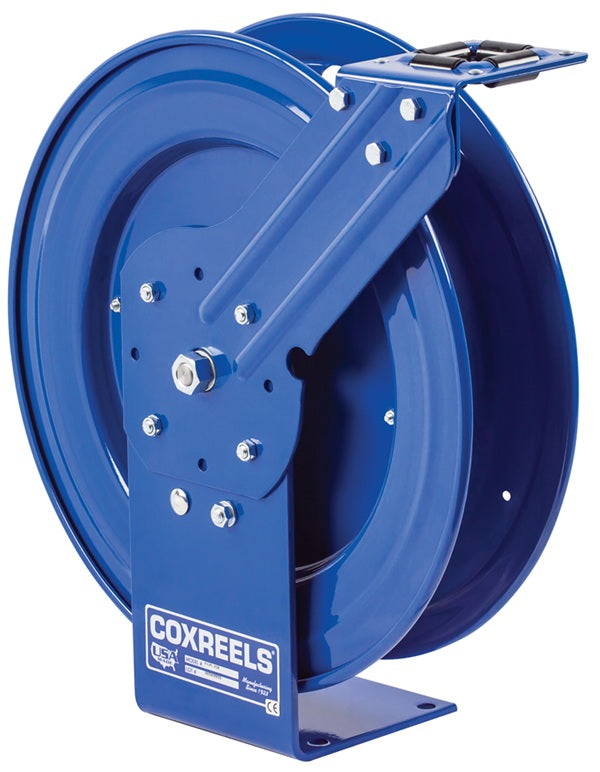

P2550N by Dixon Valve | P Series | Low Pressure Spring Driven Hose Reel - without Hose | 50ft of 1/4" Hose Capacity | Steel

Name: P2550N by Dixon Valve | P Series | Low Pressure Spring Driven Hose Reel - without Hose | 50ft of 1/4" Hose Capacity | Steel
Brand: Dixon
SKU: P2550N Dixon
Price: 429.73 USD
Availability: InStock

Save $286.49

$716.22

$716.22 - $716.22

$716.22

$429.73

$429.73 - $429.73

$429.73

Dixon Valve
P-Series Low Pressure Spring Driven Hose Reel

Made in the U.S.A.

Specifications for Variant SKU: P2550N Dixon
Series:	P Series

Applications:
Air, Water
Construction:
Professional grade heavy-duty steel construction. 1" solid steel axle & lubricated precision bearings for smooth rotation. Non-corrosive stainless steel spring, pawl & zinc plated ratchet. Blue powder coat.
Features:
Rolled edges and ribbed discs provide strength and safety. Compact space-saving size and heavy-duty construction make it highly versatile. Multi-position lock ratchet mechanism secures hose at desired length.
Specifications:
Maximum temperature 150°F (66°C) Pressure Rating: 300 PSI at 70°F (21°C)

Reel With Hose
Part Number	Hose I.D.	Hose Length	Service	Working Pressure PSI @70°F
P2550	1/4"	50ft	Air / Water	300 PSI
P3835	3/8"	35ft	Air / Water	300 PSI
P3850	3/8"	50ft	Air / Water	300 PSI
P5050	1/2"	50ft	Air / Water	300 PSI

Reel Without Hose
Part Number	Hose Capacity	Service	Working Pressure PSI @70°F
P2550N	50ft of 1/4"	Air / Water	300 PSI
P3875N	50ft of 3/8"	Air / Water	300 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
