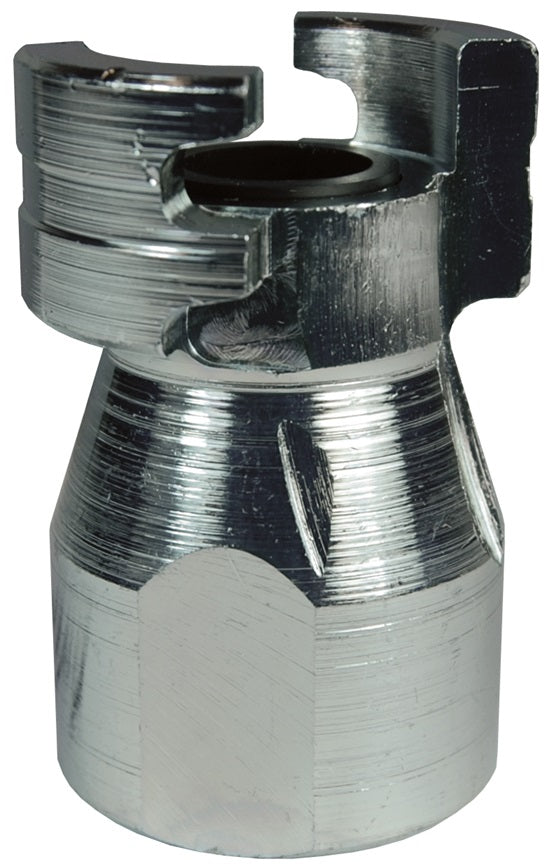

P4F4 by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dual-Lock P-Series | 1/2" Female NPTF x 1/2" Body Size | Plug | Nitrile Seal | Steel

Save $1.14

$14.99

$14.99 - $14.99

$14.99

$13.85

$13.85 - $13.85

$13.85

Dixon Valve & Coupling
Pneumatic Coupling: Dual-Lock P-Series Plug (Female Threads)

Quantity

Specifications for Variant SKU: P4F4 Dixon
Series:	P-Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPTF, Thor QD Interchange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Thor Finger-Lock Interchange Interchanges with National A type, Campbell Double-Lock and Thor PHC series couplings
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

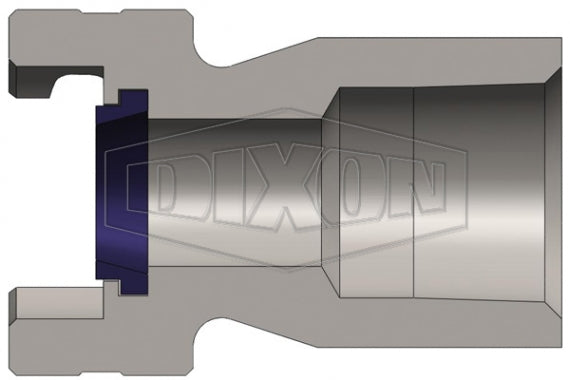

Dual-Lock P-Series \| Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Wrench Flats	Max. Operating Pressure	Burst Pressure
P4F3	Plug/Male	1/2"	3/8" - 18 Female NPTF	Steel	1.79" (45.5mm)	1.55" (39.4mm)	7/8"	300 PSI (20 bar)	2600 PSI (180 bar)
P4F4	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	2.25" (57.2mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	2600 PSI (180 bar)
P4F4-B	Plug/Male	1/2"	1/2" - 14 Female NPTF	Brass	2.25" (57.2mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	3500 PSI (240 bar)
P4F6	Plug/Male	1/2"	3/4" - 14 Female NPTF	Steel	2.34" (59.4mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	2600 PSI (180 bar)
P4F6-9	Plug/Male	1/2"	3/4" - 14 Female NPTF	Steel/PTFE Coating	2.34" (59.4mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	2600 PSI (180 bar)
P4F6-B	Plug/Male	1/2"	3/4" - 14 Female NPTF	Brass	2.34" (59.4mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	3500 PSI (240 bar)
P4F6-S	Plug/Male	1/2"	3/4" - 14 Female NPTF	303 Stainless	2.34" (59.4mm)	1.55" (39.4mm)	1-5/16"	300 PSI (20 bar)	4500 PSI (310 bar)
P4F8	Plug/Male	1/2"	1" - 11-1/2 Female NPTF	Steel	2.76" (70.1mm)	1.55" (39.4mm)	1-7/16"	300 PSI (20 bar)	2600 PSI (180 bar)
P4F8-B	Plug/Male	1/2"	1" - 11-1/2 Female NPTF	Brass	2.76" (70.1mm)	1.55" (39.4mm)	1-7/16"	300 PSI (20 bar)	3500 PSI (240 bar)

Dual-Lock P-Series \| Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Wrench Flats	Max. Operating Pressure	Burst Pressure
4PF4	Socket/Female	1/2"	1/2" - 14 Female NPTF	Steel	2.75" (69.9mm)	1.55" (39.4mm)	1-1/4"	300 PSI (20 bar)	2600 PSI (180 bar)
4PF6	Socket/Female	1/2"	3/4" - 14 Female NPTF	Steel	2.75" (69.9mm)	1.55" (39.4mm)	1-1/4"	300 PSI (20 bar)	2600 PSI (180 bar)
4PF6-B	Socket/Female	1/2"	3/4" - 14 Female NPTF	Brass	2.75" (69.9mm)	1.55" (39.4mm)	1-1/4"	300 PSI (20 bar)	3500 PSI (240 bar)
4PF6-S	Socket/Female	1/2"	3/4" - 14 Female NPTF	303 Stainless	2.75" (69.9mm)	1.55" (39.4mm)	1-1/4"	300 PSI (20 bar)	4500 PSI (310 bar)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
