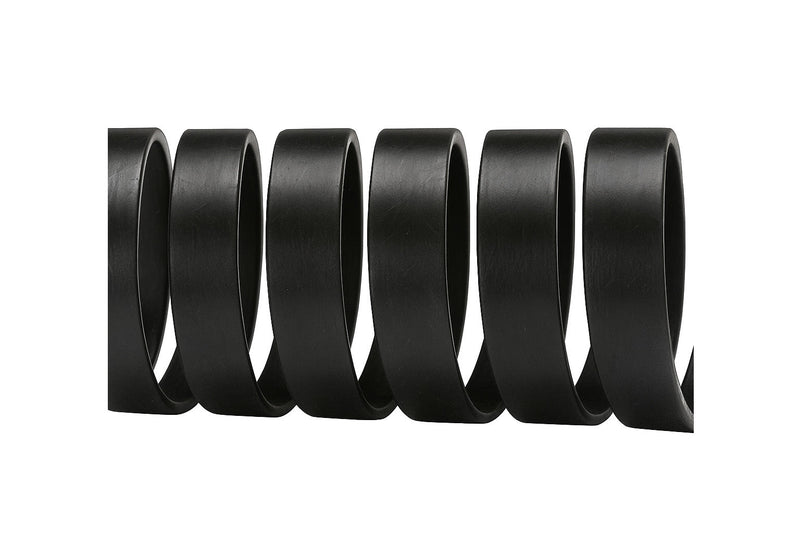

PCG-25-H Alfagomma by Kuriyama | PCG Series | Hose Protector | Coil Sleeve | 0.75" ID | 0.122" Wall Thickness | 100ft Roll Length | Plastic

Save $98.67

$345.34

$345.34 - $345.34

$345.34

$246.67

$246.67 - $246.67

$246.67

Kuriyama of America Inc.
Alfagomma | Hose Protector | PCG Series | Flat Coil Sleeve - Plastic

ALFAGOMMA Plastic Protective Flat Coil Sleeves prolong the life of hose lines that are exposed to rugged operating conditions.

Specifications for Variant SKU: PCG-25-H Kuriyama
Brand:	Alfagomma
Series:	PCG Series
Material(s):	Plastic

Features:
The high density polyethylene plastic coil sleeve is air, water, oil, gasoline and hydraulic fluid-resistant and withstands temperatures from -60°F (-51°C) to +175°F (+79°C). This coil can also be used for bundling groups of hoses. Other colors available on request. Material: High Density Polyethylene Plastic

Part Number	ID (in)	Wall Thickness (in)	For Use on These Hoses	Roll Length (ft)	Weight(lbs/coil)
PCG-16-H	0.50"	0.069"	TR1MT, TF2MT/ST, TR2MT, ABT4K, ABT5K, ABT6K	100ft	6.00 Lbs
PCG-20-H	0.66"	0.075"	TR1MT, TF2MT/ST, TR2MT, ABT4K, ABT6K	100ft	9.00 Lbs
PCG-25-H	0.75"	0.122"	TR1MT, TF2MT/ST , TR2MT, ABT4K, ABT6K	100ft	14.00 Lbs
PCG-32-H	1.00"	0.118"	TR1MT, TF2MT/ST, TR2MT, ABT4K, ABT6K	100ft	21.00 Lbs
PCG-39-H	1.25"	0.132"	TR1MT, TF2MT/ST, TR2MT, ABT4K, ABT5K, ABT6K	100ft	20.00 Lbs
PCG-50-H	1.60"	0.150"	TR1MT, TF2MT/ST, TR2MT, ABT3K, ABT4K, ABT5K, ABT6K	100ft	17.00 Lbs
PCG-59-H	2.00"	0.160"	TR1MT, TF2MT/ST, TR2MT, ABT3K, ABT4K, ABT5K, ABT6K	100ft	41.00 Lbs
PCG-75-H	2.50"	0.209"	TR1MT, TF2MT/ST, TR2MT, ABT3K, ABT4K, ABT5K, ABT6K	75ft	36.00 Lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
