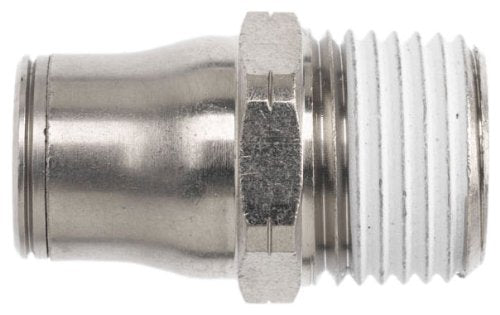

PCNB2404-08-08 by Brennan Inc. | -08 Tube x -08 Male NPT Connector | Straight | Nickel Plated Brass

PCNB2404-08-08 by Brennan Inc. | -08 Tube x -08 Male NPT Connector | Straight | Nickel Plated Brass

$14.00 - $14.00
$14.00
$14.80
$14.80 - $14.80
$14.80

Brennan Inc.
Push to Connect: PCNB2404 - Tube x Male NPT Connector Straight
Specifications for Variant SKU: PCNB2404-08-08 Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-to-Connect, 1/2in Male NPT
Material(s): Brass
Part Number Material OD C NPT E F1 F2 H K Scale OZ
PCNB2404-04-02 Nickel Plated Brass 1/4" 1/8" 0.30" 13mm 4mm 0.67" 0.55" 0.42"
PCNB2404-04-04 Nickel Plated Brass 1/4" 1/4" 0.43" 14mm 4mm 0.67" 0.59" 0.62"
PCNB2404-04-06 Nickel Plated Brass 1/4" 3/8" 0.45" 18mm 5mm 0.67" 0.77" 1.00"
PCNB2404-06-04 Nickel Plated Brass 3/8" 1/4" 0.43" 18mm 7mm 0.95" 0.77" 1.04"
PCNB2404-06-06 Nickel Plated Brass 3/8" 3/8" 0.45" 18mm 8mm 0.91" 0.77" 1.16"
PCNB2404-08-04 Nickel Plated Brass 1/2" 1/4" 0.43" 22mm 7mm 0.95" 0.94" 1.42"
PCNB2404-08-08 Nickel Plated Brass 1/2" 1/2" 0.59" 22mm 10mm 0.95" 0.94" 1.77"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
