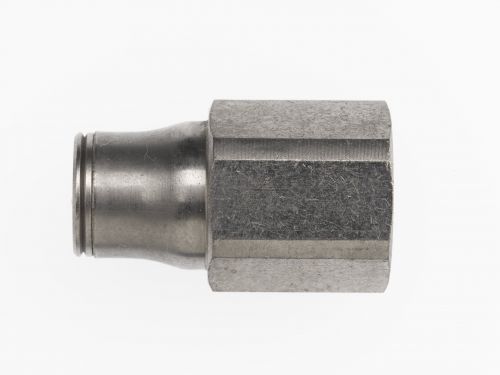

PCNB2405-04-04 by Brennan Inc. | -04 Tube x -04 Female NPT Connector | Straight | Nickel Plated Brass

PCNB2405-04-04 by Brennan Inc. | -04 Tube x -04 Female NPT Connector | Straight | Nickel Plated Brass

Save $4.06 Save $4.06
$10.15
$10.15 - $10.15
$10.15
$6.09
$6.09 - $6.09
$6.09

Brennan Inc.
Push to Connect: PCNB2405 - Tube x Female NPT Connector Straight
Specifications for Variant SKU: PCNB2405-04-04 Brennan
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/4in Female NPT
Material(s): Brass
Part Number Material OD IN C NPT E F H K Scale OZ
PCNB2405-04-02 Nickel Plated Brass 1/4" 1/8" 0.37" 14" 1.10" 0.59" 0.55"
PCNB2405-04-04 Nickel Plated Brass 1/4" 1/4" 0.50" 16" 1.18" 0.61" 0.70"
PCNB2405-06-04 Nickel Plated Brass 3/8" 1/4" 0.55" 17" 1.50" 0.73" 1.32"
PCNB2405-06-06 Nickel Plated Brass 3/8" 3/8" 0.55" 22" 1.50" 0.94" 1.97"
PCNB2405-08-06 Nickel Plated Brass 1/2" 3/8" 0.55" 22" 1.52" 0.94" 2.42"
PCNB2405-08-08 Nickel Plated Brass 1/2" 1/2" 0.73" 24" 1.67" 1.02" 2.42"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
