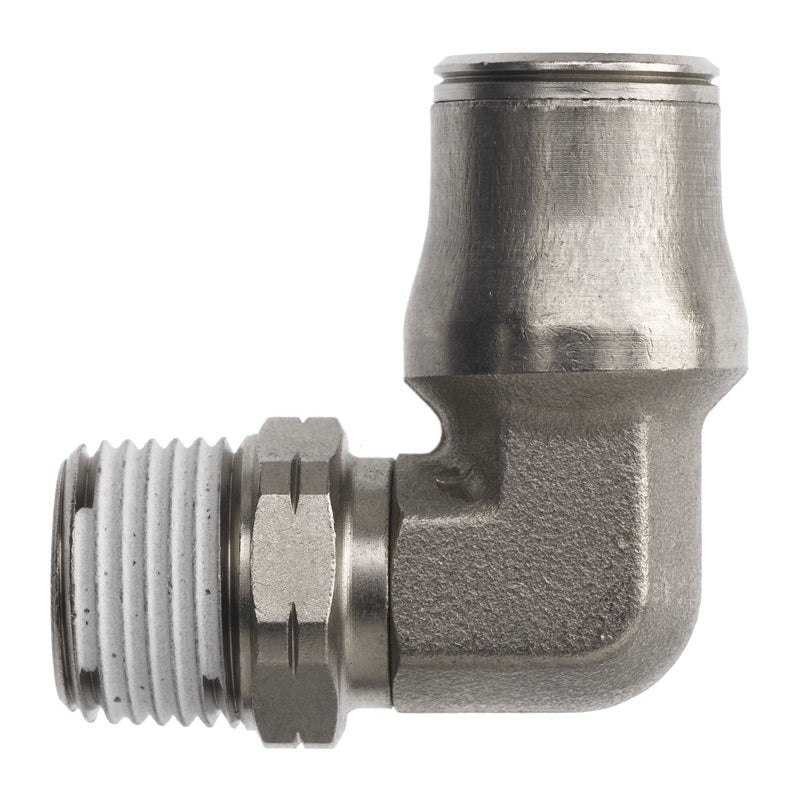

PCNB2501-08-04 by Brennan Inc. | -08 Tube x -04 Male NPT | 90° Elbow | Nickel Plated Brass

PCNB2501-08-04 by Brennan Inc. | -08 Tube x -04 Male NPT | 90° Elbow | Nickel Plated Brass

Save $8.75 Save $8.75
$21.87
$21.87 - $21.87
$21.87
$13.12
$13.12 - $13.12
$13.12

Brennan Inc.
Push to Connect: PCNB2501 - Tube x Male NPT 90° Elbow
Specifications for Variant SKU: PCNB2501-08-04 Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Push-to-Connect, 1/4in Male NPT
Material(s): Brass
Part Number Material OD C NPT E F G H J K L Scale OZ
PCNB2501-04-02 Nickel Plated Brass 1/4" 1/8" 0.30" 13mm 0.49" 0.69" 0.32" 0.47" 0.87" 0.62"
PCNB2501-04-04 Nickel Plated Brass 1/4" 1/4" 0.43" 14mm 0.49" 0.75" 0.32" 0.59" 0.87" 0.81"
PCNB2501-04-06 Nickel Plated Brass 1/4" 3/8" 0.45" 18mm 0.49" 0.75" 0.32" 0.77" 0.87" 1.12"
PCNB2501-05-02 Nickel Plated Brass - - - - - - - - - -
PCNB2501-06-02 Nickel Plated Brass 3/8" 1/4" 0.43" 15mm 0.67" 0.93" 0.47" 0.63" 1.14" 1.40"
PCNB2501-06-04 Nickel Plated Brass 3/8" 1/4" 0.43" 15mm 0.67" 0.93" 0.47" 0.63" 1.14" 1.40"
PCNB2501-06-06 Nickel Plated Brass 3/8" 3/8" 0.45" 18mm 0.67" 1.02" 0.47" 0.77" 1.14" 1.57"
PCNB2501-06-08 Nickel Plated Brass 3/8" 1/2" 0.59" 22mm 0.67" 1.06" 0.47" 0.94" 1.14" 2.27"
PCNB2501-08-04 Nickel Plated Brass 1/2" 1/4" 0.43" 15mm 0.79" 1.14" 0.59" 0.63" 1.22" 1.65"
PCNB2501-08-06 Nickel Plated Brass 1/2" 3/8" 0.45" 18mm 0.79" 1.14" 0.59" 0.77" 1.22" 1.90"
PCNB2501-08-08 Nickel Plated Brass 1/2" 1/2" 0.75" 22.2mm 0.78" 1.25" 0.62" 0.99" 1.25" 2.41"
