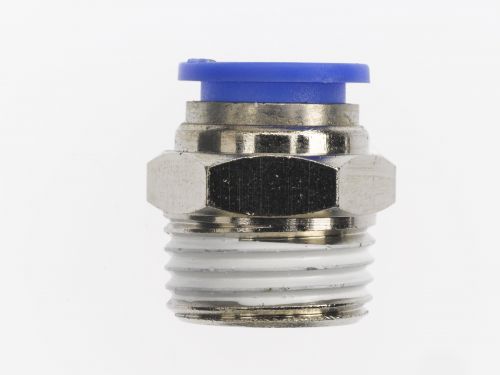

PCNY2404-08-08 by Brennan Inc. | -08 Tube x -08 Male NPT | Straight | Glass Reinforced Nylon

PCNY2404-08-08 by Brennan Inc. | -08 Tube x -08 Male NPT | Straight | Glass Reinforced Nylon

Save $1.79 Save $1.79
$4.48
$4.48 - $4.48
$4.48
$2.69
$2.69 - $2.69
$2.69

Brennan Inc.
Push to Connect: PCNY2404 - Tube x Male NPT Straight
Specifications for Variant SKU: PCNY2404-08-08 Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-to-Connect, 1/2in Male NPT
Material(s): Glass Reinforced Nylon
Part Number Material OD 1 C NPT F1 F2 H K Scale OZ
PCNY2404-02-02 Glass Reinforced Nylon 1/8" 1/8" 11mm 0.07" 0.283" 0.472" 0.25
PCNY2404-02-04 Glass Reinforced Nylon 1/8" 1/4" 14mm 0.07" 0.315" 0.591" 0.59
PCNY2404-04-02 Glass Reinforced Nylon 1/4" 1/8" 11mm 5/32" 0.472" 0.472" 0.26
PCNY2404-04-04 Glass Reinforced Nylon 1/4" 1/4" 14mm 5/32" 0.374" 0.590" 0.50
PCNY2404-04-06 Glass Reinforced Nylon 1/4" 3/8" 18mm 3/16" 0.295" 0.767" 0.88
PCNY2404-05-02 Glass Reinforced Nylon 5/16" 1/8" 13mm 3/16" 0.787" 0.551" 0.45
PCNY2404-06-02 Glass Reinforced Nylon 3/8" 1/8" 16mm 5/32" 0.894" 0.689" 0.79
PCNY2404-06-04 Glass Reinforced Nylon 3/8" 1/4" 16mm 6mm 0.807" 0.689" 0.73
PCNY2404-06-06 Glass Reinforced Nylon 3/8" 3/8" 18mm 9/32" 0.689" 0.767" 0.97
PCNY2404-06-08 Glass Reinforced Nylon 3/8" 1/2" 22mm 9/32" 0.610" 0.945" 2.00
PCNY2404-08-04 Glass Reinforced Nylon 1/2" 1/4" 22mm 1/4" 1.1" 0.945" 1.62
PCNY2404-08-06 Glass Reinforced Nylon 1/2" 3/8" 22mm 3/8" 1.1" 0.945" 0.89
PCNY2404-08-08 Glass Reinforced Nylon 1/2" 1/2" 22mm 9/32" 1.1" 0.945" 2.51
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
