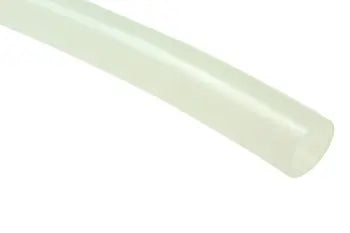

PE0417-500N by Coilhose | Tubing | 1/4" OD x .170" ID | .040" Wall thickness | Natural | Polyethylene | 500ft

Save $7.67

$69.03

$69.03 - $69.03

$69.03

$61.36

$61.36 - $61.36

$61.36

Coilhose Pneumatics - Plastic Tubing - Polyethylene Tubing - 1/4" OD x .170" ID

Quantity

Specifications for Variant SKU: PE0417-500N Coilhose
Hose Color(s):	Natural
Material(s):	Polyethylene

Overview:
Polyethylene is one of the most popular choices for low pressure tubing due to its resistance to most chemicals and solvents, good flexibility and economical cost. Coilhose's PE Tubing is manufactured from high quality resins and extruded to close tolerances.
Compatible with:
Coilock Fittings Poly-Tube Fittings

Temperature Range:	-40° F to 150° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	-0.004" all inch sizes; -0.1 mm all Metric sizes	Hardness:	44 Shore D
Working Pressure:	3 to 1 Safety Factor	Compliance:	FDA for food contact

Part Number 100ft Length	Part Number 500ft Length	Part Number 1000ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
PE0417-100K	PE0417-500K	PE0417-1000K	Black	1/4" x .170"	.040"	200 PSI
PE0417-100B	PE0417-500B	PE0417-1000B	Blue
PE0417-100G	PE0417-500G	PE0417-1000G	Green
PE0417-100N PE0417-100D*	PE0417-500N	PE0417-1000N	Natural
PE0417-100R PE0417-100RD*	PE0417-500R	PE0417-1000R	Red
PE0417-100Y PE0417-100YD*	PE0417-500Y	PE0417-1000Y	Yellow

* Comes in Dispenser Box
