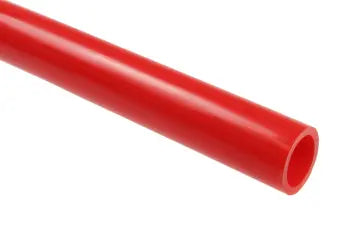

PE2510-250R by Coilhose | Tubing | 5/32" OD x .106" ID | .025" Wall thickness | Red | Polyethylene | 250ft

Save $24.41

$61.02

$61.02 - $61.02

$61.02

$36.61

$36.61 - $36.61

$36.61

Coilhose Pneumatics - Plastic Tubing - Polyethylene Tubing - 5/32" OD x .106" ID

Specifications for Variant SKU: PE2510-250R Coilhose
Hose Color(s):	Red
Material(s):	Polyethylene

Overview:
Polyethylene is one of the most popular choices for low pressure tubing due to its resistance to most chemicals and solvents, good flexibility and economical cost. Coilhose's PE Tubing is manufactured from high quality resins and extruded to close tolerances.
Compatible with:
Coilock Fittings Poly-Tube Fittings

Temperature Range:	-40° F to 150° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	-0.004" all inch sizes; -0.1 mm all Metric sizes	Hardness:	44 Shore D
Working Pressure:	3 to 1 Safety Factor	Compliance:	FDA for food contact

Part Number 100ft Length	Part Number 250ft Length	Part Number 1000ft Length	Part Number 2500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
PE2510-100K	PE2510-250K	PE2510-1000K	PE2510-2500K	Black	5/32" x .106"	.025"	175 PSI
PE2510-100B	PE2510-250B	PE2510-1000B	PE2510-2500B	Blue
PE2510-100G	PE2510-250G	PE2510-1000G	PE2510-2500G	Green
PE2510-100N PE2510-100D*	PE2510-250N PE2510-250D*	PE2510-1000N	PE2510-2500N	Natural
PE2510-100Q	-	-	-	Orange
PE2510-100R	PE2510-250R	PE2510-1000R	PE2510-2500R	Red
PE2510-100Y	PE2510-250Y	-	-	Yellow

* Comes in Dispenser Box
