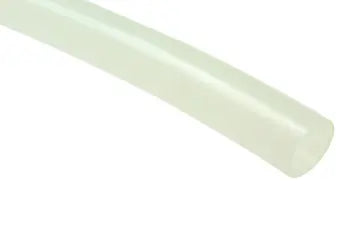

PE3103-100N by Coilhose | Tubing | 5/16" OD x .236" ID | .038" Wall thickness | Natural | Polyethylene | 100ft

PE3103-100N by Coilhose | Tubing | 5/16" OD x .236" ID | .038" Wall thickness | Natural | Polyethylene | 100ft

Save $2.63 Save $2.63
$23.68
$23.68 - $23.68
$23.68
$21.05
$21.05 - $21.05
$21.05
Coilhose Pneumatics - Plastic Tubing - Polyethylene Tubing - 5/16" OD x .236" ID
Specifications for Variant SKU: PE3103-100N Coilhose
Hose Color(s): Natural
Material(s): Polyethylene
Overview:
  • Polyethylene is one of the most popular choices for low pressure tubing due to its resistance to most chemicals and solvents, good flexibility and economical cost. Coilhose's PE Tubing is manufactured from high quality resins and extruded to close tolerances.
Compatible with:

Temperature Range: -40° F to 150° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: -0.004" all inch sizes;
-0.1 mm all Metric sizes		 Hardness: 44 Shore D
Working Pressure: 3 to 1 Safety Factor Compliance: FDA for food contact

Part Number
100ft Length		 Part Number
500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PE3103-100K PE3103-500K Black 5/16" x .236" .038" 230 PSI
PE3103-100B PE3103-500B Blue
PE3103-100N PE3103-500N Natural
PE3103-100R PE3103-500R Red
