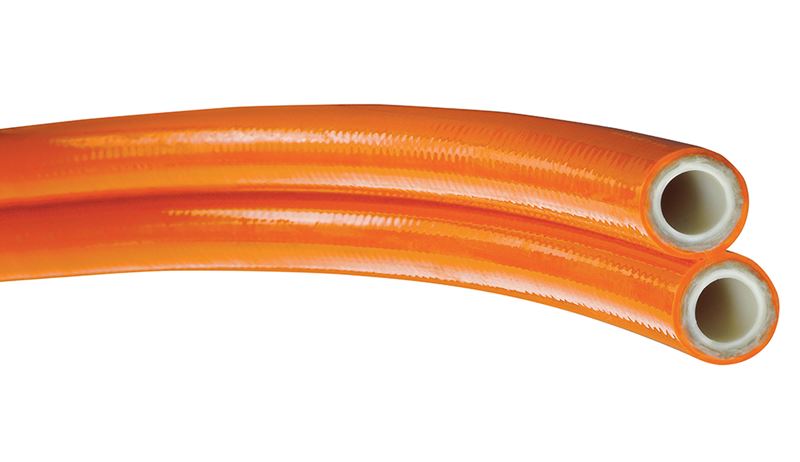

PF267NCTL-04-50BX Alfagomma Piranhaflex™ by Kuriyama | PF267NCTL Series | SAE 100R7 | Kink Resistant Twin Line Thermoplastic Hydraulic Hose | Non-Conductive | 1/4" ID | 0.496" OD | 2750 PSI | 50ft Length

Save $132.93

$465.26

$465.26 - $465.26

$465.26

$332.33

$332.33 - $332.33

$332.33

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF267NCTL Series | SAE 100R7 | Non-Conductive Kink Resistant Twin Line Thermoplastic Hydraulic Hose

Made in the USA.

Suitable for industrial equipment and vehicles (construction, agriculture, material handling) in applications down to -65°F.

Package Quantity: 50 Feet

Specifications for Variant SKU: PF267NCTL-04-50BX Kuriyama \| 50 \|
Brand:	Alfagomma, Piranhaflex
Series:	PF267NCTL Series
Hose Color(s):	Orange
Dash Size:	-04
Internal Diameter:	0.25in
Outer Diameter:	0.496in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7, SAE J517, ANSI 92.28, REACH Compliant
Special Properties:	Twin Line
Compatible with the following Series:	P Series \| A Series

Other Features:
Application:	Industrial equipment and vehicles (construction, agriculture, material handling, etc.). Aerial equipment (PF267NCTL only). Hydraulic oil and lubrication lines.	SAE Rating:	SAE 100R7 (ANSI A92.2)
Other Ratings:	REACH (Non-Conductive ONLY) SAE J517 ANSI 92.28 (3/16" - 1/2", For vehicle mounted aerial devices)	Tube:	Copolyester
Reinforcement:	Braided high tensile strength fibers	Cover:	Pin pricked, abrasion resistant polyurethane, in conductive black (PF267TL), or non-conductive orange (PF267NCTL series) versions.
Service Temperature Range:	-65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids *Maximum 140°F (+60°C) for water and phosphate-ester based hydraulic fluids
Kink Resistant Technology - Proprietary design shown to exhibit 53% better resistance to kink initiation, and 16% less force to bend, versus competitive 100R7 hose in comparison testing. Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications. Meets ANSI A92.2 (PF267NCTL Series Only) - Meets ANSI insulating requirement for aerial devices used in areas of high electricity. Tested to less than 50 microamperes leakage when subjected to 75,000 volts/ft. for 5 min. Pin Pricked Cover (PF267TL Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering. NOTE: Boxed 250' reels or boxed 50' coils. Max two pieces per reel, minimum pc. length 50'.

PF267TL Series \| Conductive
Part Number 250ft Reel	Part Number 50ft Reel	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	Part Number 50ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF267TL-04-250R	PF267TL-04-50BX	1/4"	6.4mm	0.496"	12.6mm	2750 PSI	1.50"	38mm	0.14 lbs/ft
PF267TL-06-250R	PF267TL-06-50BX	3/8"	9.7mm	0.651"	16.5mm	2250 PSI	2.00"	51mm	0.24 lbs/ft
PF267TL-08-250R	PF267TL-08-50BX	1/2"	13.1mm	0.834"	21.2mm	2000 PSI	3.00"	76mm	0.34 lbs/ft

PF267NCTL Series \| Non-Conductive
Part Number 250ft Reel	Part Number 50ft Reel	ID		OD		Max. Working Pressure	Min Bend Radius		Weight
Part Number 250ft Reel	Part Number 50ft Reel	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
PF267NCTL-04-250R	PF267NCTL-04-50BX	1/4"	6.4mm	0.496"	12.6mm	2750 PSI	1.50"	38mm	0.14 lbs/ft
PF267NCTL-06-250R	PF267NCTL-06-50BX	3/8"	9.7mm	0.651"	16.5mm	2250 PSI	2.00"	51mm	0.24 lbs/ft
PF267NCTL-08-250R	PF267NCTL-08-50BX	1/2"	13.1mm	0.834"	21.2mm	2000 PSI	3.00"	76mm	0.34 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
