PF415CP-06-250R Alfagomma Piranhaflex™ by Kuriyama | PF415CP Series | SAE 100R3 | Constant Pressure Hydraulic Hose | 3/8" ID | 0.610" OD | 1500 PSI | 250ft Length

Save $182.67 Save $182.67
Original price $639.34
Original price $639.34 - Original price $639.34
Original price $639.34
Current price $456.67
$456.67 - $456.67
Current price $456.67

Kuriyama of America Inc.

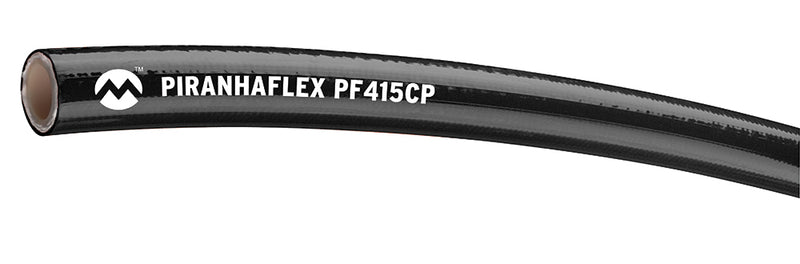

Alfagomma Piranhaflex | PF415CP Series | SAE 100R3 | Constant Pressure Hydraulic Hose

Made in the USA.

For Lower pressure hydraulic applications, industrial equipment and vehicles, such as used in construction, agriculture and material handling.


Package Quantity: 250 Feet

Specifications for Variant SKU: PF415CP-06-250R Kuriyama | 250 |
Brand: Alfagomma, Piranhaflex
Series: PF415CP Series
Hose Color(s): Black
Dash Size: -06
Internal Diameter: 0.375in
Outer Diameter: 0.610in
Tubing Construction: Nylon
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R3
Special Properties: Conductive Hose Cover, Pin Pricked Hose Cover
Compatible with the following Series: PFR3 Series
Application: Lower pressure hydraulic applications.
Industrial equipment and vehicles, such as used in construction, agriculture and material handling
SAE Rating: Meets or exceeds SAE 100R3

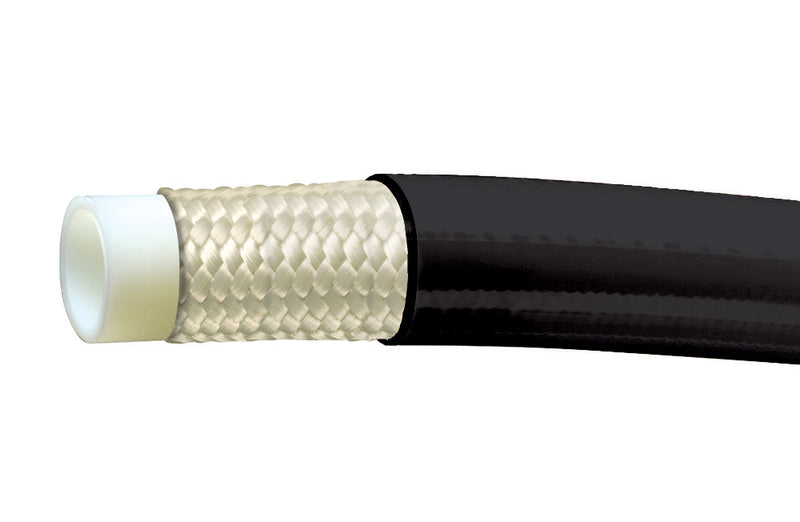

Other Ratings: - Tube: Nylon
Reinforcement: Braided high tensile strength fibers Cover: Pin pricked, abrasion resistant, conductive polyurethane
Service Temperature Range: -40°F (-40°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Other Features:
  • Isobaric - Consistent 1,500 PSI working pressure regardless of hose size. Eliminates user risk of hose misapplication within a given pressure system.
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 45% lighter weight than similar rubber hoses.
  • Pin Pricked Cover - Allows for the escape of gasses should they potentially become trapped between the layers, preventing instances of cover blistering.
  • NOTE: Boxed 250ft long reels. Max two pieces per reel, minimum pc. length 50ft.
Part Number
250ft Reel
ID OD Max. Working
Pressure*
Min Bend
Radius
Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF415CP-04-250R 1/4" 6.4mm 0.410" 10.4mm 1500 PSI 1.50" 38.1mm 0.05 lbs/ft
PF415CP-05-250R 5/16" 8.1mm 0.520" 13.2mm 1500 PSI 1.75" 44.5mm 0.07 lbs/ft
PF415CP-06-250R 3/8" 9.7mm 0.610" 15.5mm 1500 PSI 2.50" 63.5mm 0.10 lbs/ft
PF415CP-08-250R 1/2" 13.1mm 0.750" 19.1mm 1500 PSI 3.00" 76.2mm 0.12 lbs/ft
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
