PFR-08 Alfagomma Piranhaflex™ by Kuriyama | PFR Series | Two-Piece Non-Skive Ferrule | -08 Hose Dash Size | 1/2" Hose ID | Steel

Save $0.87

$3.04

$3.04 - $3.04

$3.04

$2.17

$2.17 - $2.17

$2.17

Kuriyama of America Inc.
Alfagomma Piranhaflex™ | PFR Series | Two-Piece Non-Skive Ferrule

Specifications for Variant SKU: PFR-08 Kuriyama
Brand:	Alfagomma, Piranhaflex
Series:	PFR Series
Material(s):	Steel
Compatible with the following Series:	PF427 Series \| PF427NC Series \| PF267 Series \| PF267NC Series \| PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF628 Series \| PF628NC Series \| PF321TC Series \| PF344LMT Series

About PFR-Series Ferrules:
Two piece non-skive ferrule for use with: "A" insert on all PiranhaFlex™ hydraulic hoses, R7, R8 and R18 styles.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.

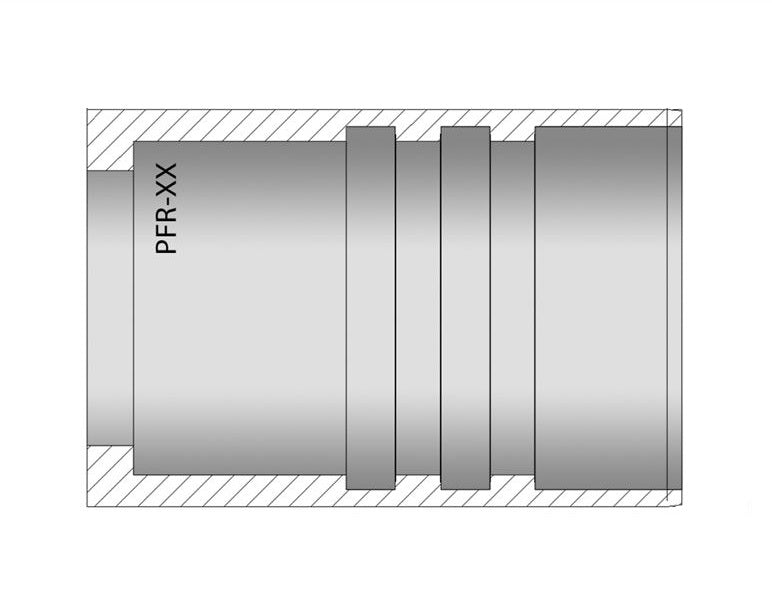

Steel Part Number	Dash Size	Hose ID Size		B OD	L Length	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm)	(mm)	lbs/each
PFR-03	03	3/16"	4.7mm	14.9mm	24.0mm	0.03 lbs
PFR-04	04	1/4"	6.4mm	17.0mm	29.0mm	0.04 lbs
PFR7-05*	05	5/16"	7.9mm	19.0mm	29.0mm	0.04 lbs
PFR-06	06	3/8"	9.5mm	21.0mm	31.0mm	0.05 lbs
PFR-08	08	1/2"	12.7mm	25.4mm	36.0mm	0.06 lbs
PFR-12	12	3/4"	19.05mm	31.8mm	45.2mm	0.11 lbs

* PFR7-05 ferrules are to be used only with SAE 100R7 hoses!
