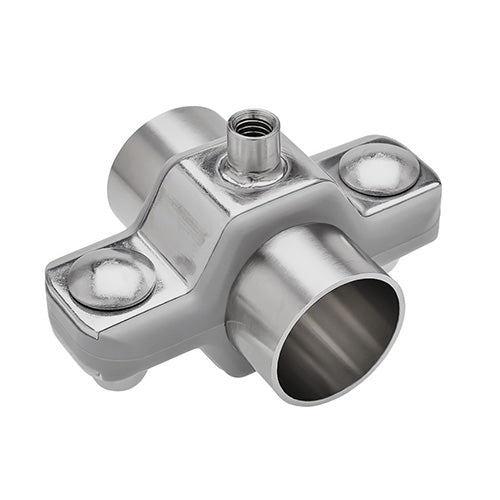

PHTCM-600T-304SLN by ACL Hygienic | Process Hex Hanger Threaded Coupling w/ Lock Nut | 6" Tube Size x 3/4" Thread | Gray | 304 Stainless Steel

PHTCM-600T-304SLN by ACL Hygienic | Process Hex Hanger Threaded Coupling w/ Lock Nut | 6" Tube Size x 3/4" Thread | Gray | 304 Stainless Steel

Save $42.37 Save $42.37
$105.93
$105.93 - $105.93
$105.93
$63.56
$63.56 - $63.56
$63.56

ACL Hygienic
Sanitary, Washdown, and Pipe Hanging Systems:Pipe Hanging Systems - Process Hex Hanger Threaded Coupling

Specifications for Variant SKU: PHTCM-600T-304SLN ZSi-Foster
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Applications:
  • Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semiconductor industries.
  • Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines
Sizes:
  • Support Range: 1/4" – 6" Tube and 1/2" – 6" Pipe
Features:
  • ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime
Materials:
  • 304 and 316 stainless steels
  • ZERO PUDDLE inserts are FDA grade silicone rubber
Specifications:
  • Intermittent temperatures from -40F to 320F
  • Continues temperatures from -20F to 302F
Benefits:
  • Drainable and Cleanable
  • There are no exposed threads or openings in hardware plates
  • Carriage bolts lock into Hardware Frame's square hole allowing installer to use a single wrench
  • The antiquated Entrapping Hex Hanger requires two wrenches, increasing safety concerns and installation time
  • Carriage bolts are reversible, so rounded drainable surface is always on the hangers topside
  • Hanger threads match MSS 69 rod OD requirements
  • Silicone inserts are resistant to high and low temperatures
Process Hex Hanger Threaded Coupling: FOR ATTACHMENT: Use Shielded Rod, solid rod with threaded end(s) or all thread rod
Part Number
w/ Acorn Nut		 Part Number
w/ Lock Nut		 Tube Size Line OD H L W CL Round Coupling
Height Thread
PHTCM-050T-304SAN PHTCM-050T-304SLN 1/2" .50" 1.15" 2.80" 1.10" 0.575" 0.47" 3/8-16
PHTCM-075T-304SAN PHTCM-075T-304SLN 3/4" 0.75" 1.15" 2.80" 1.10" 0.575" 0.47" 3/8-16
PHTCM-100T-304SAN PHTCM-100T-304SLN 1" 1" 1.45" 3" 1.10" 0.725" 0.47" 3/8-16
PHTCM-150T-304SAN PHTCM-150T-304SLN 1-1/2" 1.50" 1.96" 4" 1.42" 0.981" 0.47" 3/8-16
PHTCM-200T-304SAN PHTCM-200T-304SLN 2" 2" 2.50" 4.6" 1.42" 4" 0.47" 3/8-16
PHTCM-250T-304SAN PHTCM-250T-304SLN 2-1/2" 2.50" 4" 5.10" 1.42" 4" 0.59" 1/2-13
PHTCM-300T-304SAN PHTCM-300T-304SLN 3" 3" 3.50" 5.60" 1.42" 1.75" 0.59" 1/2-13
PHTCM-400T-304SAN PHTCM-400T-304SLN 4" 4" 4.55" 6.75" 1.42" 2.275" 0.59" 1/2-13
PHTCM-600T-304SAN PHTCM-600T-304SLN 6" 6" 6.29" 9.25" 1.42" 3.145" 0.88" 3/4-11

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
