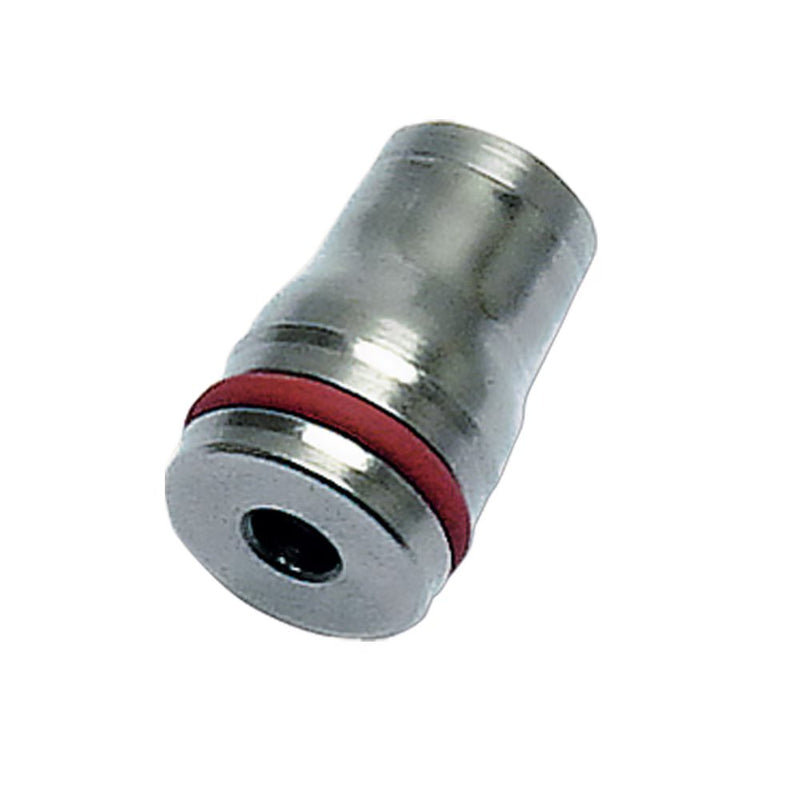

PLMC-4M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Cartridge | 4 mm Tube Size | 17.50 mm Length | Electroless Nickel-Plated Brass | Pack of 10

PLMC-4M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Cartridge | 4 mm Tube Size | 17.50 mm Length | Electroless Nickel-Plated Brass | Pack of 10

Save $4.83 Save $4.83
$53.11
$53.11 - $53.11
$53.11
$48.28
$48.28 - $48.28
$48.28

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:PLMC Cartridge

Package Quantity: 10 Units

Specifications for Variant SKU: PLMC-4M Parker | 10 |
Series: PLMC Series
Shape (Orientation): No Orientation
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size G
+ .1 - 0		 H1 H2 N
PLMC-4M 4 mm 10.00 mm 9.00 mm 8.50 mm 11.00 mm
PLMC-6M 6 mm 12.00 mm 11.00 mm 8.50 mm 13.50 mm
PLMC-8M 8 mm 15.00 mm 12.50 mm 8.50 mm 16.00 mm
PLMC-10M 10 mm 17.50 mm 14.50 mm 10.50 mm 20.00 mm
PLMC-12M 12 mm 19.50 mm 15.00 mm 10.50 mm 22.50 mm
