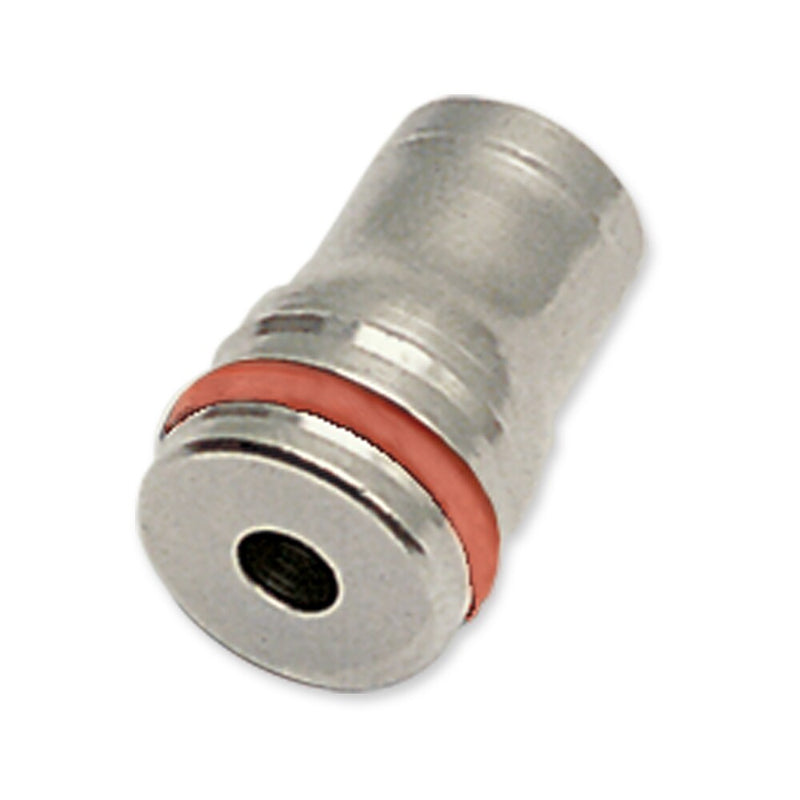

PLSC-4M by Parker | Prestolok PLS Push-to-Connect Fittings | Cartridge | 4 mm Tube Size | 18.00 mm Length | Straight | Stainless Steel | Pack of 2

Save $50.91

$127.28

$127.28 - $127.28

$127.28

$76.37

$76.37 - $76.37

$76.37

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:PLSC Cartridge - Metric

Package Quantity: 2 Units

Specifications for Variant SKU: PLSC-4M Parker \| 2 \|
Series:	PLSC Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free

Product Features:	Stainless steel 316L collet Stainless steel 316L body FKM seal Stainless steel 316L backup washer Chemical, corrosion, and abrasion resistance Hygienic design reduces retention zones for Easy cleaning NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Petrochemical Life Science Pulp and Paper Food Processing Wash Down
Compatible Media:	Food Fluids Chemicals Cleaning Agents Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Semi-rigid nylon Polyethylene Polyurethane 95 Durometer Shore A Stainless Steel (grooved) Copper (grooved) FEP


Part Number	Tube Size	G + .1 - 0	G1	H	H1	H2	N
PLSC-4M	4 mm	9.80 mm	8 mm	18.00 mm	9.50 mm	8.50 mm	11.00 mm
PLSC-6M	6 mm	12.10 mm	10 mm	20.00 mm	11.50 mm	8.50 mm	13.50 mm
PLSC-8M	8 mm	14.80 mm	13 mm	22.00 mm	13.50 mm	8.50 mm	16.00 mm
PLSC-10M	10 mm	17.50 mm	15 mm	25.50 mm	15.00 mm	10.50 mm	20.00 mm
