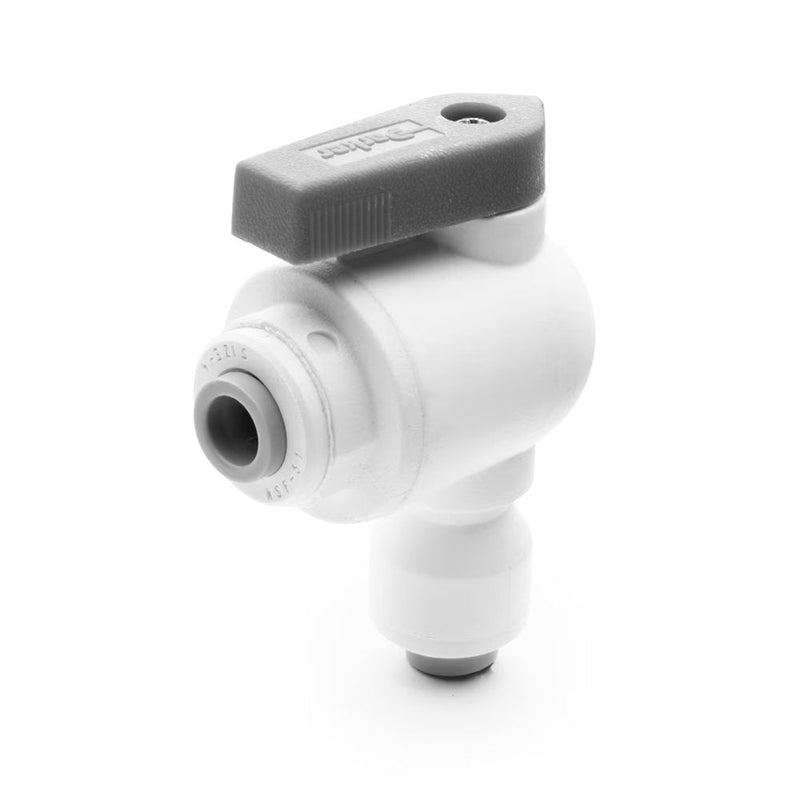

PP4VEU4-MG by Parker | TrueSeal™ Ball Valve | 1/4" Push-to-Connect x 1/4" Push-to-Connect | 2.33" Length | 90° Elbow | White | Polypropylene

PP4VEU4-MG by Parker | TrueSeal™ Ball Valve | 1/4" Push-to-Connect x 1/4" Push-to-Connect | 2.33" Length | 90° Elbow | White | Polypropylene

Save $0.63 Save $0.63
$9.00
$9.00 - $9.00
$9.00
$8.37
$8.37 - $8.37
$8.37

by Parker Hannifin
Ball Valves Polypropylene:Valve Elbow Union
Specifications for Variant SKU: PP4VEU4-MG Parker
Brand: TrueSeal™
Series: VEU Series
Shape (Orientation): 90° Elbow
Material(s): Polypropylene
Seal Material(s): EPDM
Special Properties: Food Grade, Corrosion Resistance, Filtration, Valved
Product Features:
  • Wide chemical acceptance range
  • Bi-directional flow maximizes productivity
  • Full flow reduces pressure drop across valve
  • EPDM Seals – LIQUIfit, TrueSeal, and Par-barb
  • Nitrile Seals – Fast and Tite
  • Push-in and barbed connections
  • Meets FDA and NSF/ANSI 51 requirements for food contact
  • LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:
  • Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting.
  • Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:
  • LFPP – LIQUIfit
  • PP – TrueSeal
  • PBPP – Par-Barb
  • FTPPB - Fast and Tite
Specification:
Temperature Range: 35° to +200° F (+1.7° to +93.3° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Tube Size 1 Tube Size 2 A B C D ØE Thru Hole Min
PP4VEU4-MG 1/4" 1/4" 1.75" 1.22" 2.33" 1.42" .19"
PP4VEU6-MG 1/4" 3/8" 1.75" 1.22" 2.33" 1.42" .11"
PP6VEU4-MG 3/8" 1/4" 1.83" 1.30" 2.33" 1.40" .19"
PP6VEU6-MG 3/8" 3/8" 1.85" 1.32" 2.34" 1.44" .25"
