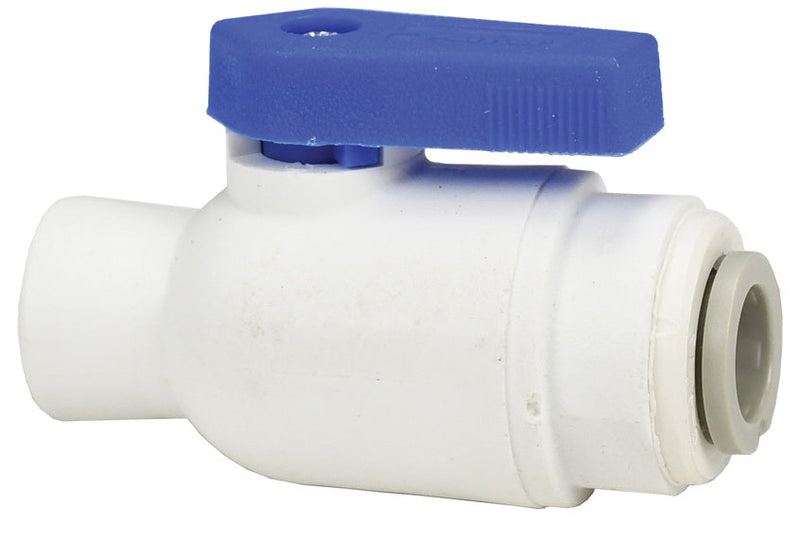

PP6VFC6-MG by Dixon Valve | TrueSeal™ Ball Valve | 3/8" Female NPTF x 3/8" Tube OD | Polypropylene

PP6VFC6-MG by Dixon Valve | TrueSeal™ Ball Valve | 3/8" Female NPTF x 3/8" Tube OD | Polypropylene

Save $6.91 Save $6.91
$17.28
$17.28 - $17.28
$17.28
$10.37
$10.37 - $10.37
$10.37

Dixon Valve
TrueSeal™ Ball Valve | Female NPTF x Tube End

These corrosion-resistant, all-plastic designed ball valves are ideal for water filtration units, coffee and beverage machines, and a wide variety of other fluid applications.
Specifications for Variant SKU: PP6VFC6-MG Dixon
Brand: TrueSeal
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-to-Connect, 3/8in Female NPTF
Material(s): Polypropylene
Seal Material(s): EPDM
Features:
  • Special O-ring seal ensures a reliable leak-tight connection.
  • Full flow design reduces pressure drop across the valve.
  • Bi-directional flow maximizes productivity.
  • Precision molded, all-plastic design is leak free and corrosion resistant.
Material:
  • Glass-reinforced Polypropylene body
  • O-ring seal material: EPDM
  • High-temperature, scale resistant Polysulfone ball.
  • EPDM seal secures connection with larger surface area than standard O-rings.
Approvals:
  • FDA compliant
  • NSF/ANSI-51 listed for contact with food
  • Certified to NSF/ANSI-61
Specifications:
  • Temperature range: 35°F to 200°F (2°C to 93°C)
  • Maximum operating pressure: 150 PSI
  • Actual working pressures will be lower at elevated temperatures
Part Number Tube O.D. Female NPTF
PP4VFC2-MG 1/4" 1/8"
PP4VFC4-MG 1/4" 1/4"
PP4VFC6-MG 1/4" 3/8"
PP6VFC2-MG 3/8" 1/8"
PP6VFC4-MG 3/8" 1/4"
PP6VFC6-MG 3/8" 3/8"
