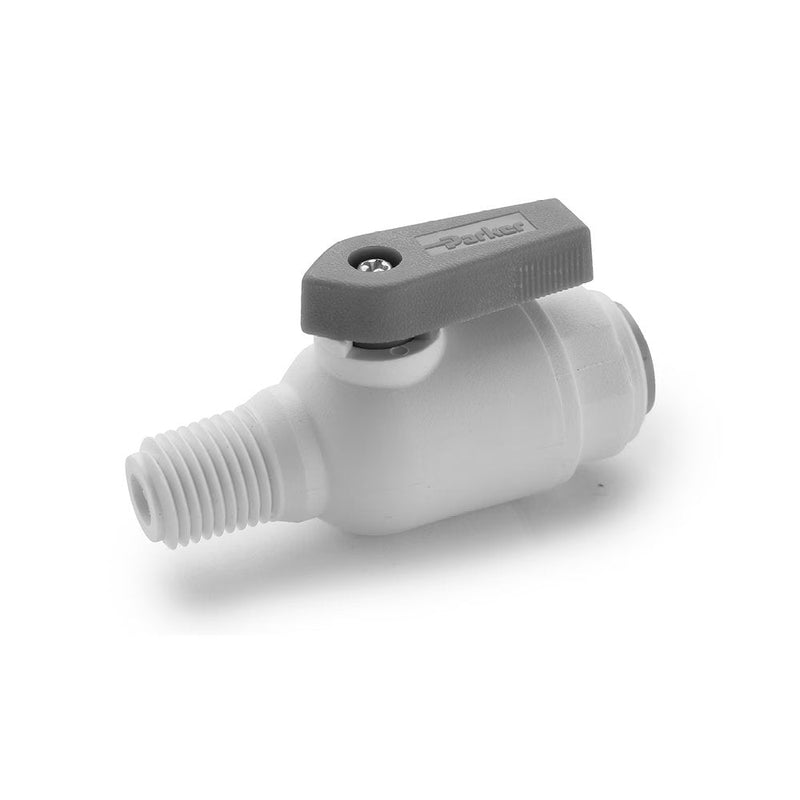

PP6VMC6-MG by Parker | TrueSeal™ Ball Valve | 3/8" Push-to-Connect x 3/8" Male NPTF Thread | 2.51" Length | Straight | White | Polypropylene

PP6VMC6-MG by Parker | TrueSeal™ Ball Valve | 3/8" Push-to-Connect x 3/8" Male NPTF Thread | 2.51" Length | Straight | White | Polypropylene

Save $3.19 Save $3.19
$7.98
$7.98 - $7.98
$7.98
$4.79
$4.79 - $4.79
$4.79

by Parker Hannifin
Ball Valves Polypropylene:Valve Male Connector
Specifications for Variant SKU: PP6VMC6-MG Parker
Brand: TrueSeal™
Series: VMC Series
Shape (Orientation): Straight
Material(s): Polypropylene
Seal Material(s): EPDM
Special Properties: Food Grade, Corrosion Resistance, Filtration, Valved
Product Features:
  • Wide chemical acceptance range
  • Bi-directional flow maximizes productivity
  • Full flow reduces pressure drop across valve
  • EPDM Seals – LIQUIfit, TrueSeal, and Par-barb
  • Nitrile Seals – Fast and Tite
  • Push-in and barbed connections
  • Meets FDA and NSF/ANSI 51 requirements for food contact
  • LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:
  • Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting.
  • Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:
  • LFPP – LIQUIfit
  • PP – TrueSeal
  • PBPP – Par-Barb
  • FTPPB - Fast and Tite
Specification:
Temperature Range: 35° to +200° F (+1.7° to +93.3° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Nom. Tube OD NPTF Thread Size A B C D ØE Thru Hole Min
PP4VMC2-MG (+) 1/4" 1/8" 2.22" 1.21" 1.4" .5" .19"
PP4VMC4-MG 1/4" 1/4" 2.40" 1.21" 1.4" .5" .19"
PP4VMC6-MG 1/4" 3/8" 2.40" 1.21" 1.4" .5" .19"
PP4VMC8-MG (+) 1/4" 1/2" 2.59" 1.21" 1.4" .5" .19"
PP6VMC4-MG 3/8" 1/4" 2.51" 1.32" 1.4" .5" .25"
PP6VMC6-MG 3/8" 3/8" 2.51" 1.32" 1.4" .5" .25"
PP6VMC8-MG (+) 3/8" 1/2" 2.70" 1.32" 1.4" .5" .25"

(+) Non Standard.
