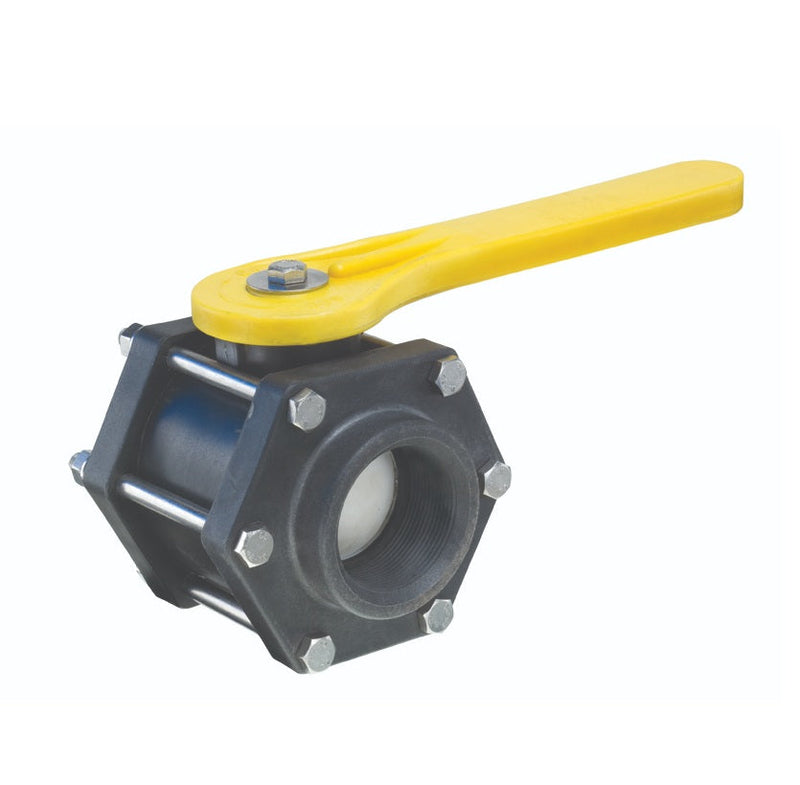

PPBV300 by Kuriyama | PPBV Series | Ball Valve | 3" Female NPT | 6-Bolt | Polypropylene

PPBV300 by Kuriyama | PPBV Series | Ball Valve | 3" Female NPT | 6-Bolt | Polypropylene

Save $29.90 Save $29.90
$173.22
$173.22 - $173.22
$173.22
$143.32
$143.32 - $143.32
$143.32

Kuriyama of America Inc.
PPBV Series | Ball Valve | Polypropylene

Full Port design allows free flow of material.

Polypropylene material is glass filled for added strength and durability.
Specifications for Variant SKU: PPBV300 Kuriyama
Series: PPBV Series
Shape (Orientation): Straight
Ends Configuration: 3in Female NPT, 3in Female NPT, Some Ends Match
Material(s): Polypropylene

What are the Features?

  • Polypropylene material is glass filled for added strength and durability.
  • Precision molded to ensure consistency in form and function.
  • Full Port design allows free flow of material.

What are the Materials?

  • Glass filled polypropylene.
  • Teflon™ seals.
  • Viton® O Ring stems and seals.
  • Stainless steel nuts and bolts.

Viton® is a registered trademark of The Chemours Company FC, LLC.
Teflon® is a registered trademark of The Chemours Company FC, LLC.

Part Number Size
(in)		 Bolt Count Threads PSI Rating
at 70°F		 Weight
Each
(lbs)
PPBV050 1/2" 4 Female NPT 150 PSI 0.88 lbs
PPBV075 3/4" 4 Female NPT 150 PSI 0.85 lbs
PPBV100 1" 4 Female NPT 150 PSI 1.16 lbs
PPBV125 1-1/4" 4 Female NPT 150 PSI 1.65 lbs
PPBV150 1-1/2" 4 Female NPT 150 PSI 1.67 lbs
PPBV200 2" 6 Female NPT 100 3.71 lbs
PPBV300 3" 6 Female NPT 100 6.60 lbs
PPBV400 4" 6 Female NPT 100 9.90 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
