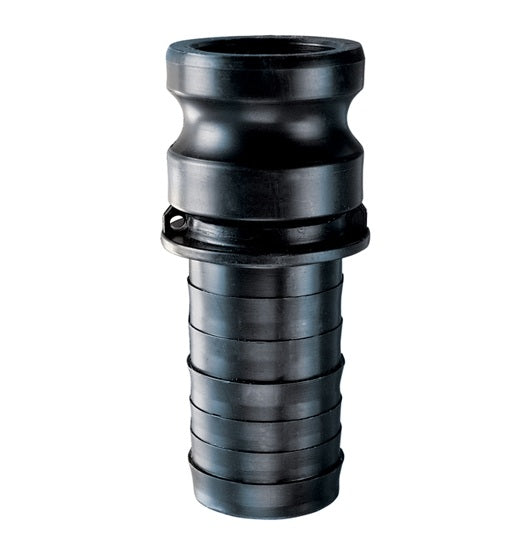

PPE100 by Kuriyama | PPE Series | Part E | Cam & Groove Fitting | 1" Adapter x 1" Hose Barb | Polypropylene

Save $3.46

$5.83

$5.83 - $5.83

$5.83

$2.37

$2.37 - $2.37

$2.37

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | PPE Series | Part E | Adapter x Hose Barb | Polypropylene

Kuriyama Camlock Couplings are intended for use in many industrial applications.

Cost-effective, high-performance alternative to metal fittings in industrial and agricultural markets.

Specifications for Variant SKU: PPE100 Kuriyama
Series:	PPE Series
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	1in Male Cam & Groove, 1in Hose Barb
Material(s):	Polypropylene

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial and agricultural applications.
Polypropylene is a cost-effective, high-performance alternative to metal options. Despite lacking the strength of stainless steel or aluminum.
Offers excellent corrosion resistance and impressive durability.

What are the Features?

Polypropylene material is glass filled for added strength and durability.
Extremely lightweight yet strong.
Precision molded to ensure consistency in form and function.
Economical when compared with other materials.

What are the Materials?

Glass filled Polypropylene.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
PPE050	1/2"	100 PSI	0.03 lbs
PPE075	3/4"	100 PSI	0.06 lbs
PPE100	1"	100 PSI	0.08 lbs
PPE125	1-1/4"	100 PSI	0.15 lbs
PPE150	1-1/2"	100 PSI	0.17 lbs
PPE200	2"	100 PSI	0.30 lbs
PPE300	3"	50 PSI	0.76 lbs
PPE400	4"	50 PSI	1.00 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
