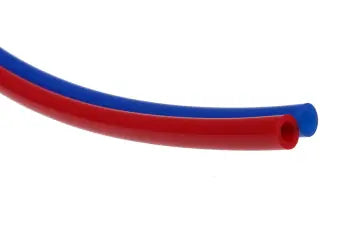

PT0606-100RB by Coilhose | Bonded Multi-Color Ribbon Tubing | 3/8" OD x 1/4" ID | Twin Tube | Red/Blue | Polyurethane | 100ft

PT0606-100RB by Coilhose | Bonded Multi-Color Ribbon Tubing | 3/8" OD x 1/4" ID | Twin Tube | Red/Blue | Polyurethane | 100ft

Save $282.21 Save $282.21
$705.52
$705.52 - $705.52
$705.52
$423.31
$423.31 - $423.31
$423.31
Coilhose Pneumatics - Plastic Tubing - Polyurethane Bonded Multi-Color Ribbon Tubing
Specifications for Variant SKU: PT0606-100RB Coilhose
Hose Color(s): Blue, Blue, White, Clear/Semi-Clear
Material(s): Polyurethane
Overview:
  • Multi-Color Ribbon Tubing, commonly known as MCR, is a cost effective method of routing two or more tubing lines. Made from 95 durometer Polyurethane, MCR can be installed faster than other jacketing options. MCR color codes tubing lines for identification, tracing or troubleshooting. MCR will withstand the rigors of flexing, yet can be easily separated for routing.
Features:
  • Saves material costs and cuts installation time.
  • Color tubes identify lines
  • Excellent alternative to tie wraps & jackets.

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number O.D. x I.D. Tubes Length Color Bend Radius WorkingPressure at 75° F
PT0404-50RB 1/4" x .160" Twin 50ft Red-Blue 1/2" 175 PSI
PT0PT0404-50RBWC 1/4" x .160" Quad 50ft Red-Blue / White-Clear 1/2" 175 PSI
PT0404-100RB 1/4" x .160" Twin 100ft Red-Blue 1/2" 175 PSI
PT0PT0404-100RBWC 1/4" x .160" Quad 100ft Red-Blue / White-Clear 1/2" 175 PSI

PT0606-50RB 3/8" x 1/4" Twin 50ft Red-Blue 7/8" 170 PSI
PT0404-50RBWC 3/8" x 1/4" Quad 50ft Red-Blue / White-Clear 7/8" 170 PSI
PT0606-100RB 3/8" x 1/4" Twin 100ft Red-Blue 7/8" 170 PSI
PT0404-100RBWC 3/8" x 1/4" Quad 100ft Red-Blue / White-Clear 7/8" 170 PSI
