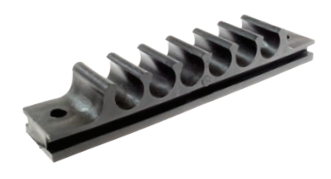

PTC8-6 by Coilhose | Tube Channel | 1/2" Tube OD | 6 Channels

PTC8-6 by Coilhose | Tube Channel | 1/2" Tube OD | 6 Channels

Save $0.78 Save $0.78
$6.98
$6.98 - $6.98
$6.98
$6.20
$6.20 - $6.20
$6.20
Coilhose Pneumatics - Plastic Tubing - Tube Channels
Specifications for Variant SKU: PTC8-6 Coilhose
Overview:
  • Tube Channels provide a convenient method of organizing, routing and securing tubing lines. They also make it easier to follow and trace multiple runs of tubing. There are two configurations of Tubing Channel to choose from:
  • Smaller O.D. Tubing: 5/32" - 1/4" / 4.0 mm - 6.35 mm
    • This smaller style 10 Tube Channel is supplied with an adhesive backing for quick and easy mounting. Countersunk holes sized for number 4 screws are also provided on each channel section. The channel is designed to be easily cut to accommodate between 1 and 10 tubes.
  • Larger O.D. Tubing: 3/8" - 1/2" / 9.52 mm - 12.70 mm
    • This larger style Tube Channel has screw mounting holes in the lips on each end. They are available with different numbers of channel slots to fit various application needs.

Model Tube O.D.(inch) Tube O.D.(metric) No. of Channels
TC5-10 5/32" 4.0 mm 10
TC3-10 3/16" 4.75 mm 10
TC4-10 1/4" 6.35 mm 10
PTC6-7 3/8" 9.52 mm 7
PTC6-10 3/8" 9.52 mm 10
PTC8-6 1/2" 12.70 mm 6
