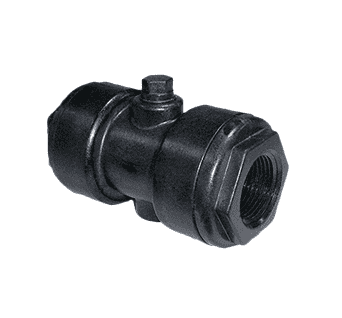

PV075V Banjo Polypropylene Air Actuated Shutoff Valve - Pinch Valve - 3/4" Female NPT x 3/4" Female NPT - FKM (Viton Type) Gasket - 70 PSI

PV075V by Banjo | Air Actuated Shutoff Valve for Pinch Valve | 3/4" Female NPT x 3/4" Female NPT | Gasket: FKM (Viton) | 100 PSI | Polypropylene

Save $17.19 Save $17.19
$122.39
$122.39 - $122.39
$122.39
$105.20
$105.20 - $105.20
$105.20

Banjo Valves - Air Actuated Shutoff Valves - Pinch Valves - Polypropylene
Specifications for Variant SKU: PV075V Banjo
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • Open position allows full, unobstructed flow, 50-60 GPM.
  • Air pressure collapses the internal rubber sleeve to provide positive shut off.
  • Standard EPDM rubber bladder seal, FKM (viton type) available
  • Female NPT Threads.
  • Attention: The polypropylene air actuated valve is normally an open valve, and has a maximum liquid pressure of 70 PSI The pressure differential (pressure it takes to close valve) of the valve is 15 to 20 PSI
Part Number Description End Type Gasket Max PSI Pressure Difference
PV075 Poly Pinch Valve 3/4" Female NPT x 3/4" Female NPT EPDM 300 PSI 15 to 20 PSI
PV075V Poly Pinch Valve 3/4" Female NPT x 3/4" Female NPT FKM (Viton Type) 100 PSI 15 to 20 PSI
PV100 Poly Pinch Valve 1" Female NPT x 1" Female NPT EPDM 300 PSI 15 to 20 PSI
PV100-075 Poly Pinch Valve 1" Female NPT x 3/4" Female NPT EPDM 300 PSI 15 to 20 PSI
PV100-075V Poly Pinch Valve 1" Female NPT x 3/4" Female NPT FKM (Viton Type) 300 PSI 15 to 20 PSI
Replacement Parts for PV075, PV100, PV100-075, PV100V, PV100-075V, PV100-075BV
Item Part Number Description Quantity Required
4 12723 1/4" Drain Plug 1
5 12724 EPDM O-Ring for Drain Plug 1
Replacement Parts for PV075
Item Part Number Description Quantity Required
1 PV07257 3/4" End Plate 2
3 PV10265 EPDM Rubber Bladder Seal 1

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
