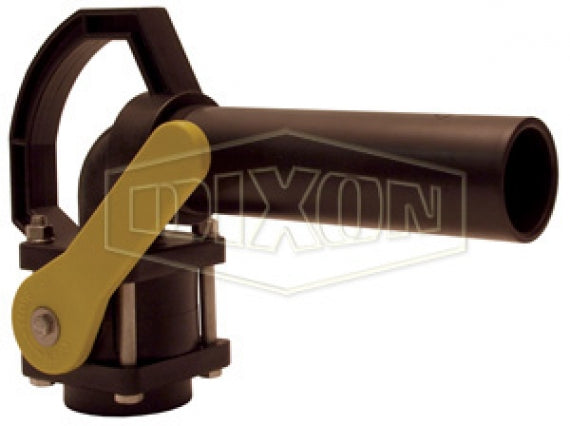

PVFPN150 by Dixon Valve | Bolted Ball Valve with Nozzle | Full Port | 1 " Female NPT | Polypropylene

PVFPN150 by Dixon Valve | Bolted Ball Valve with Nozzle | Full Port | 1 " Female NPT | Polypropylene

Save $53.55 Save $53.55
$133.88
$133.88 - $133.88
$133.88
$80.33
$80.33 - $80.33
$80.33

Dixon Valve & Coupling
Bolted Ball Valve with Nozzle | Polypropylene

FDA approved material.
Specifications for Variant SKU: PVFPN150 Dixon
Shape (Orientation): 90° Elbow
Ends Configuration: 1in Female NPT
Material(s): Polypropylene
Seal Material(s): EPDM
Features:
  • Body-to-flange design allows for low torque operation.
Materials:
  • Chemically-resistant, reinforced polypropylene body.
  • PTFE ball seat.
  • EPDM O-ring body seals, FKM O-ring stem seals.
  • 304 stainless steel nuts and bolts.
Specifications:
  • Pressure rating: 125 PSI at 70°F (21°C)
Approvals:
  • FDA approved material.
Part Number Female NPT x Nozzle Port
PVFPN150 1" Female NPT Full
PVFPN200 2" Female NPT Full
PVN200 2" Female NPT Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
