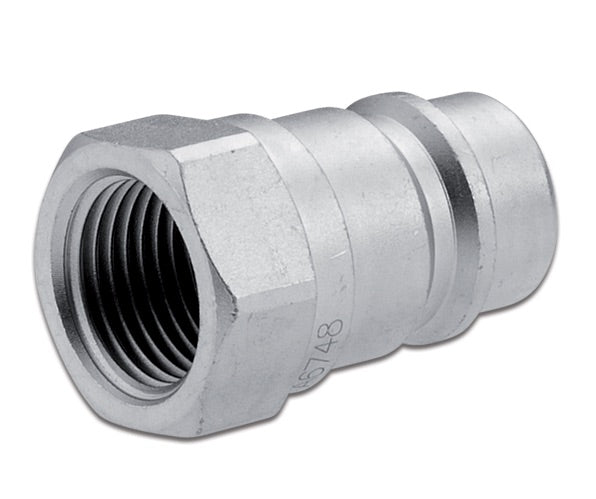

QAM-0606-FNPR ARGUS by Kuriyama | Hydraulic Quick Disconnect Coupling | QA-ISO-A | Poppet Standard ISO 7241 A | -06 ISO 7241 A x -06 Female NPTF | Plug | Galvanized Steel

Save $2.00

$7.00

$7.00 - $7.00

$7.00

$5.00

$5.00 - $5.00

$5.00

Kuriyama of America Inc.
ARGUS | Hydraulic Quick Disconnect Plug| QA-ISO-A | Standard ISO 7241 A - Poppet | Female NPTF

ARGUS ISO 7241-1 series "A" quick release couplings are used for quick coupling and uncoupling of hydraulic lines.

Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.

Specifications for Variant SKU: QAM-0606-FNPR Kuriyama
Brand:	ARGUS
Series:	QA-ISO-A
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female ISO-A QD Interchange, 3/8in Female NPTF
Material(s):	Galvanized Steel
Applicable Specs & Approvals:	ISO 7241 A

Features:	ARGUS ISO 7241-1 series "A" quick release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or lowpressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-A quick release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.
Construction:	Galvanized steel with hardened parts subject to wear. NBR O-rings. Thermoplastic dust cap and dust plug. ARGUS couplings feature a chrome-III zinc plating with a long lasting resistance to oxidation (TOP COAT, patented).
Application:	Suitable for liquid lines with mineral oil-based hydraulic fluids to din 51524 T1+T2.
Specifications:	ISO 7241 A
Temperature range:	-4°F (-20°C) to +212°F (+100°C)
Note:	Rated flow / pressure drop compliant with ISO 7241-1 standard.

Poppet Standard ISO 7241 A \| Rated Pressure Chart
Dash Size	ID Size	Working Pressure PSI	Burst Pressure PSI
-04	1/4"	5075 PSI	20300 PSI
-06	3/8"	4568 PSI	18270 PSI
-08	1/2"	3915 PSI	15660 PSI
-12	3/4"	3625 PSI	14500 PSI
-16	1"	2900 PSI	11600 PSI
-24	1-1/2"	2320 PSI	9280 PSI

Plug \| QA-ISO-A \| Poppet Standard ISO 7241 A

Part Number	Coupling Type	ID Size			Threads	D1	CH	L1	L	Dust Cap
Part Number	Coupling Type	Dash Size	mm	in	Threads	mm	mm	mm	mm	Dust Cap
QAM-0404-FNPR	Plug/Male	04	6.0mm	1/4"	1/4-18 Female NPTF	11.8mm	19.0mm	38.5mm	74.20mm	QAC-04
QAM-0606-FNPR	Plug/Male	06	10.0mm	3/8"	3/8-18 Female NPTF	17.3mm	22.0mm	39.0mm	78.50mm	QAC-06
QAM-0808-FNPR	Plug/Male	08	13.0mm	1/2"	1/2-14 Female NPTF	20.5mm	27.0mm	44.0mm	88.20mm	QAC-08
QAM-1212-FNPR	Plug/Male	12	19.0mm	3/4"	3/4-14 Female NPTF	29.0mm	34.0mm	55.0mm	110.40mm	QAC-12
QAM-1616-FNPR	Plug/Male	16	25.0mm	1"	1-11-1/2 Female NPTF	34.3mm	41.0mm	66.0mm	132.90mm	QAC-16
QAM-2424-FNPR	Plug/Male	24	38.0mm	1-1/2"	1-1/2-11-1/2 Female NPTF	55.0mm	60.0mm	83.5mm	167.0mm	-

Socket \| QA-ISO-A \| Poppet Standard ISO 7241 A

Part Number	Coupling Type	ID Size			Threads	D1	CH	L1	L	Dust Plug
Part Number	Coupling Type	Dash Size	mm	in	Threads	mm	mm	mm	mm	Dust Plug
QAF-0404-FNPR	Socket/Female	04	6.0mm	1/4"	1/4-18 Female NPTF	26.0mm	19.0mm	50.0mm	74.20mm	QAP-04
QAF-0606-FNPR	Socket/Female	06	10.0mm	3/8"	3/8-18 Female NPTF	31.5mm	22.0mm	57.1mm	78.50mm	QAP-06
QAF-0808-FNPR	Socket/Female	08	13.0mm	1/2"	1/2-14 Female NPTF	38.5mm	27.0mm	66.0mm	88.20mm	QAP-08
QAF-1212-FNPR	Socket/Female	12	19.0mm	3/4"	3/4-14 Female NPTF	48.0mm	34.0mm	82.5mm	110.40mm	QAP-12
QAF-1616-FNPR	Socket/Female	16	25.0mm	1"	1-11-1/2 Female NPTF	56.0mm	41.0mm	100.0mm	132.90mm	QAP-16
QAF-2424-FNPR	Socket/Female	24	38.0mm	1-1/2"	1-1/2-11-1/2 Female NPTF	84.5mm	60.0mm	133.0mm	167.0mm	-
