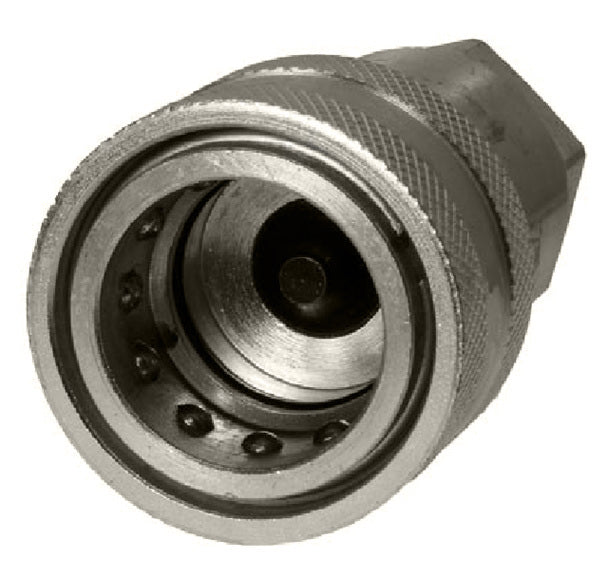

QC-AGPT06-M-06S by Couplamatic | Hydraulic Quick Coupler | AGPT Series | 1/4" Body Size x 9/16-18 Female SAE | Plug | Zinc Plated

Save $3.99

$9.97

$9.97 - $9.97

$9.97

$5.98

$5.98 - $5.98

$5.98

Couplamatic Inc
Hydraulic Quick Couplers - AGPT Series Couplers

Specifications for Variant SKU: QC-AGPT06-M-06S Couplamatic
Series:	AGPT Series
Shape (Orientation):	Straight

Features:
AGPT Series Couplers are made to the ISO 5675 Standard (1/2" only). High quality poppet valve couplers with nitrile seals and balanced spings in the poppets. Zinc Plating
Temperature:
-40°F (-40°C) to 223°F (106°C).
Applications:
Construction Agriculture Mobile


Part Number	Body Size	Body Size (ISO)	Coupler Gender	Thread Size	Working Pressure	Coupled Burst	Female Burst	Male Burst	"A"Length	"B"Length	"C"Length
QC-AGPT06-F-06S	1/4"	06	Female	9/16-18 SAE	5437 PSI	23200 PSI	23200 PSI	23200 PSI	2.9"	2.2"	-
QC-AGPT06-M-06S	1/4"	06	Male	9/16-18 SAE	5437 PSI	23200 PSI	23200 PSI	23200 PSI	2.9"	-	1.4"

QC-AGPT12-F-08N	1/2"	12	Female	1/2-14 NPT	4640 PSI	18850 PSI	20300 PSI	21750 PSI	3.5"	2.6"	-
QC-AGPT12-M-08N	1/2"	12	Male	1/2-14 NPT	4640 PSI	18850 PSI	20300 PSI	21750 PSI	3.5"	-	1.7"

QC-AGPT12-F-08S	1/2"	12	Female	3/4x16 SAE	4640 PSI	18850 PSI	20300 PSI	21750 PSI	3.5"	2.6"	-
QC-AGPT12-M-08S	1/2"	12	Male	3/4x16 SAE	4640 PSI	18850 PSI	20300 PSI	21750 PSI	3.5"	-	1.7"

QC-AGPT12-F-10S	1/2"	12	Female	7/8x14 SAE	4640 PSI	18850 PSI	20300 PSI	21750 PSI	3.5"	2.6"	-
QC-AGPT12-M-10S	1/2"	12	Male	7/8x14 SAE	4640 PSI	18850 PSI	20300 PSI	21750 PSI	3.5"	-	1.7"
