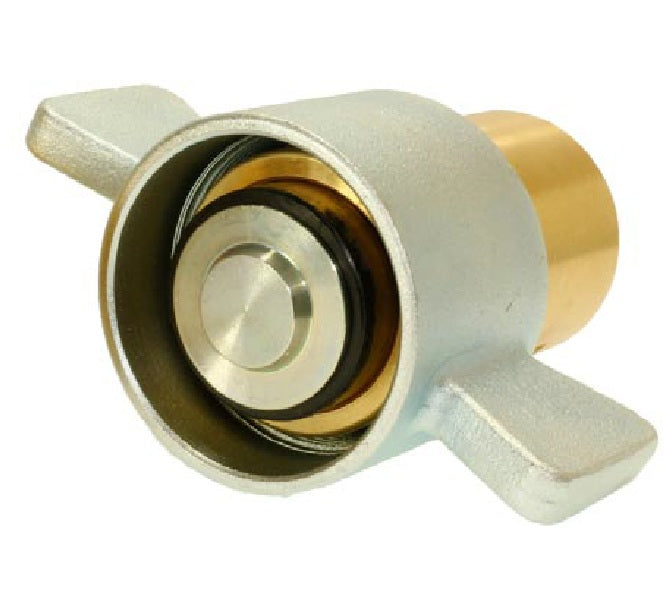

QC-WNG40-F-24N by Couplamatic | Hydraulic Quick Coupler | WNG Series | Screw to Connect | 1-1/2" Body Size x 1-1/2-11-1/2 Female NPT | Socket | Brass with Zinc Plated Wing Nut

QC-WNG40-F-24N by Couplamatic | Hydraulic Quick Coupler | WNG Series | Screw to Connect | 1-1/2" Body Size x 1-1/2-11-1/2 Female NPT | Socket | Brass with Zinc Plated Wing Nut

Save $16.94 Save $16.94
$152.47
$152.47 - $152.47
$152.47
$135.53
$135.53 - $135.53
$135.53

Couplamatic Inc
Hydraulic Quick Couplers - WNG Series Brass Screw to Connect Couplers
Specifications for Variant SKU: QC-WNG40-F-24N Couplamatic
Series: WNG Series
Shape (Orientation): Straight
Features:
  • WNG Series Couplers are made with a brass body and nitrile seals.
  • They are designed for connection and disconnection by hand.
  • WNG Series can be connected with low residual pressure (up to 725 PSI or 50 bar).
  • Brass with Zinc Plating (Wing Nut)
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Trailers
  • Wet Line Kits
  • Oil and Gas Applications
Part Number Body
Size		 Body
Size
(ISO)		 Coupler
Gender		 Thread
Size		 Working
Pressure		 Coupled
Burst		 Female
Burst		 Male
Burst		 "A" Length "B" Length "C" Length
QC-WNG19-F-12N 3/4" 19 Female 3/4-14 NPT 3045 PSI 9425 PSI 8700 PSI 9425 PSI 5.3" 3.1" -
QC-WNG19-M-12N 3/4" 19 Male 3/4-14 NPT 3045 PSI 9425 PSI 8700 PSI 9425 PSI 5.3" - 3.2"
QC-WNG25-F-16N 1" 25 Female 1-11-1/2 NPT 3045 PSI 9425 PSI 8700 PSI 9425 PSI 6.1" 3.5" -
QC-WNG25-M-16N 1" 25 Male 1-11-1/2 NPT 3045 PSI 9425 PSI 8700 PSI 9425 PSI 6.1" - 3.8"
QC-WNG32-F-20N 1-1/4" 32 Female 1-1/4-11-1/2 NPT 2755 PSI 9425 PSI 8700 PSI 9425 PSI 6.4" 3.7" -
QC-WNG32-M-20N 1-1/4" 32 Male 1-1/4-11-1/2 NPT 2755 PSI 9425 PSI 8700 PSI 9425 PSI 6.4" - 3.9"
QC-WNG40-F-24N 1-1/2" 40 Female 1-1/2-11-1/2 NPT 2538 PSI 7613 PSI 6888 PSI 7613 PSI 7.0" 4.1" -
QC-WNG40-M-24N 1-1/2" 40 Male 1-1/2-11-1/2 NPT 2538 PSI 7613 PSI 6888 PSI 7613 PSI 7.0" - 4.0"
