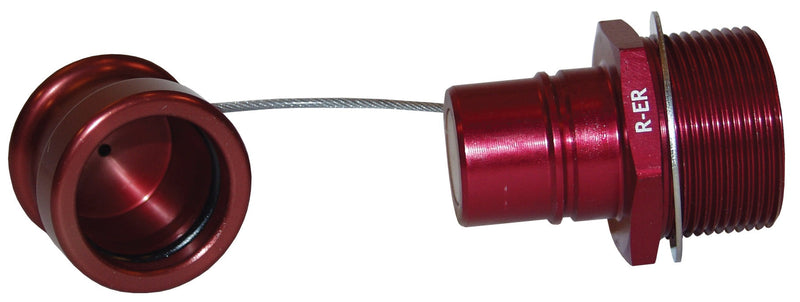

R-ER-C by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Engine Oil Receiver with Cap | 1.625-12 UN-2A Male Thread x 1.312-12 UN-2B Female Thread | Red | Anodized Aluminum

R-ER-C by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Engine Oil Receiver with Cap | 1.625-12 UN-2A Male Thread x 1.312-12 UN-2B Female Thread | Red | Anodized Aluminum

Save $114.75 Save $114.75
$286.87
$286.87 - $286.87
$286.87
$172.12
$172.12 - $172.12
$172.12

Dixon Valve
FloMAX R-Series (Roll-Pin Style) | Engine Oil Receiver

Fully compatible and interchangeable with industry standards.
Specifications for Variant SKU: R-ER-C Dixon
Brand: FloMAX
Series: R-ER Series
Shape (Orientation): Straight
Material(s): Anodized Aluminum
Features:
  • Bright Red.
  • Standard roll-pin locking mechanism.
  • Ergonomically engineered pullback and caps.
Construction:
  • All-metal construction.
  • Anodized aircraft grade aluminum non-wear components.
Engine Oil Nozzles
Part Number Description Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
R-EN Engine Oil Nozzle 3/4" Female NPT - R15 N100R
R-EN-P Engine Oil Nozzle with Plug 3/4" Female NPT - - N100RP
R-EN-PLUG Engine Oil Nozzle Plug - - R1507 P100R
Engine Oil Receivers
Part Number Description Male Thread Size Female Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
R-ER Engine Oil Receiver 1.625-12 UN-2A 1.312-12 UN-2B - R16 R100R
R-ER-C Engine Oil Receiver with Cap 1.625-12 UN-2A 1.312-12 UN-2B - - R100RC
R-ER-CAP Engine Oil Receiver Cap - - - R1605 C100R

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
