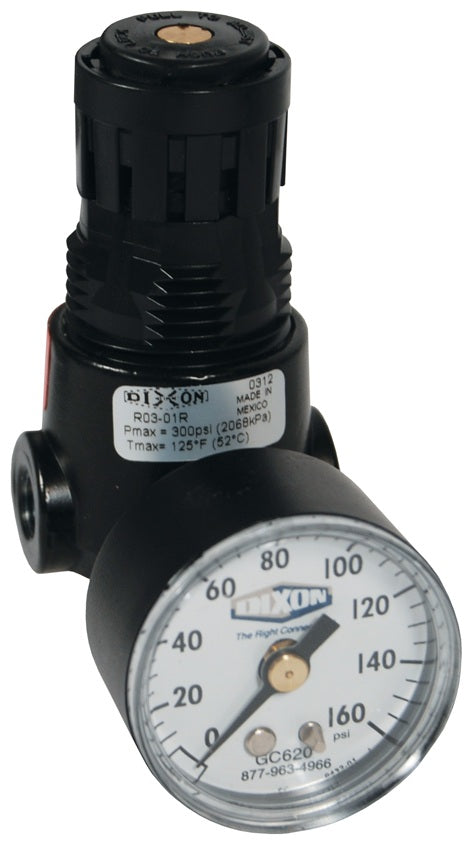

R03-01RG Wilkerson by Dixon Valve | R03-Series | Miniature Regulator | with Gauge | 1/8" Size | 13 SCFM | 2-125 PSI Adjusting Range

R03-01RG Wilkerson by Dixon Valve | R03-Series | Miniature Regulator | with Gauge | 1/8" Size | 13 SCFM | 2-125 PSI Adjusting Range

Save $3.83 Save $3.83
$45.42
$45.42 - $45.42
$45.42
$41.59
$41.59 - $41.59
$41.59

Dixon Valve
Wilkerson | R03-Series | Miniature Regulator

For air service only.

2-125 PSI adjusting range.
Specifications for Variant SKU: R03-01RG Dixon
Brand: Wilkerson
Series: R03-Series
Special Properties: Mini/Micro Size
Features:
  • Balanced valve design.
  • Self-relieving standard.
  • Non-rising push/pull locking adjustment knob.
  • Two 1/8" NPT gauge ports standard on models without gauge, one 1/8" NPT gauge port standard on models with gauge - can be used for additional outlet ports.
  • Models supplied without a gauge use a GC620 gauge.
  • Panel mount nuts sold separately.
Specifications:
  • Maximum operating conditions: 300 PSIG (20.17 bar) and 32°F to 125°F (0°C to 52°C).
  • SCFM ratings at 100 PSIG inlet pressure.
Dimensions:
Part Number
with Gauge		 Part Number
without Gauge		 Size Flow (SCFM)
R03-01RG R03-01R 1/8" 13 SCFM
R03-02RG R03-02R 1/4" 15 SCFM
