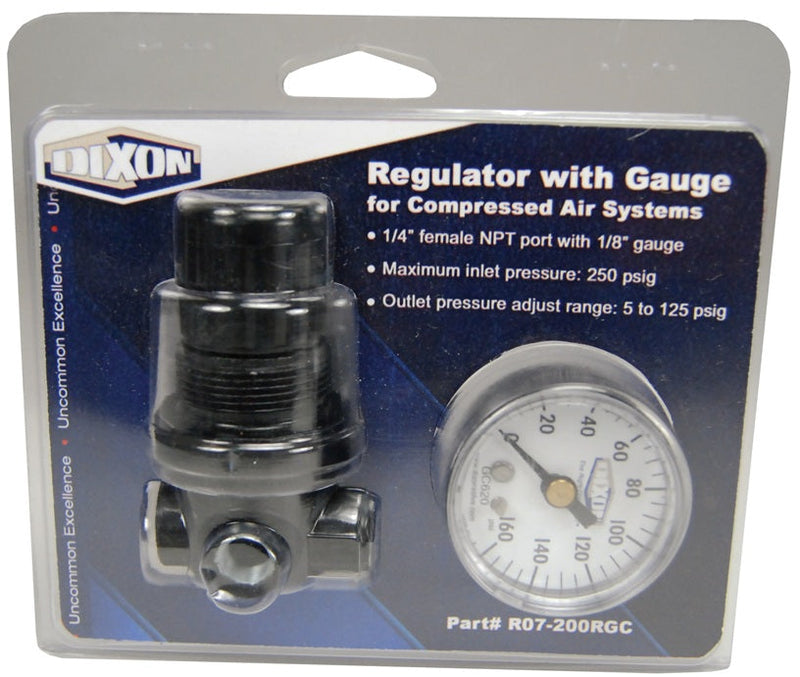

R07-200RGC by Dixon Valve | R07 Series 1 | Carded Miniature Regulator | 1/4" Port Size | 15 SCFM | with Gauge | 5-100 PSI Pressure Range

R07-200RGC by Dixon Valve | R07 Series 1 | Carded Miniature Regulator | 1/4" Port Size | 15 SCFM | with Gauge | 5-100 PSI Pressure Range

Save $39.49 Save $39.49
$98.72
$98.72 - $98.72
$98.72
$59.23
$59.23 - $59.23
$59.23

Dixon Valve
R07 Series 1 | Carded Miniature Regulator

For air service only.

- Pressure Range 5-100 PSI
Specifications for Variant SKU: R07-200RGC Dixon
Series: R07 Series 1
Special Properties: Mini/Micro Size
Features:
  • Prepackaged in clear plastic units suitable for hanging on store peg racks or displays. The primary features of each unit are printed on the package. Each package contains 1 part and an instruction sheet.
  • Relieving type.
  • Supplied with a GC620 gauge.
Specifications:
  • Inlet pressure 250 PSI maximum.
  • Maximum temperature: 150°F (66°C).
  • Pressure range 5-100 PSI.
  • SCFM ratings at 100 PSIG inlet pressure.
Dimensions:
Part Number
with Gauge		 Port Size Flow (SCFM)
R07-200RGC 1/4" 15 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
