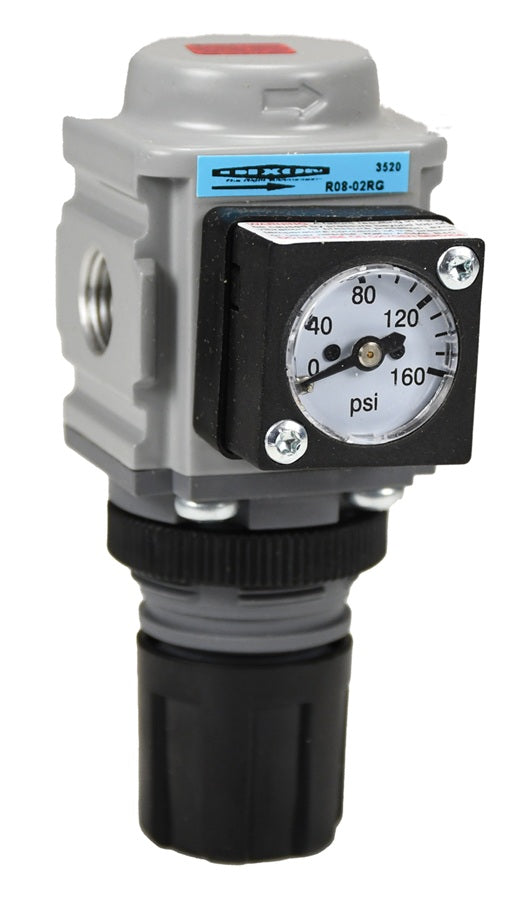

R08-02RG Wilkerson by Dixon Valve | R08-Series | Miniature Regulator | with Gauge | 1/4" Size | 68 SCFM | 0-125 PSI Adjusting Range

Save $5.78

$68.61

$68.61 - $68.61

$68.61

$62.83

$62.83 - $62.83

$62.83

Dixon Valve
Wilkerson | R08-Series | Miniature Regulator

For air service only.

0-125 PSI adjusting range.

Quantity

Specifications for Variant SKU: R08-02RG Dixon
Brand:	Wilkerson
Series:	R08-Series
Special Properties:	Mini/Micro Size

Features:
Balanced valve design. Self-relieving standard. Non-rising push/pull locking adjustment knob. Two 1/8" NPT gauge ports standard on models without gauge, one 1/8" NPT gauge port standard on models with gauge - can be used for additional outlet ports. Models with gauge are supplied with a 0-160 PSI flush mount style gauge. Models supplied without a gauge use a GC620 gauge. Panel mount nuts sold separately.
Specifications:
Maximum operating conditions: 300 PSIG (20.7 bar) and -4°F to 150°F (-20°C to 65.5°C). SCFM ratings at 100 PSIG inlet pressure.
Dimensions:

Part Number with Gauge	Size	Flow (SCFM)
R08-02RG	1/4"	68 SCFM
