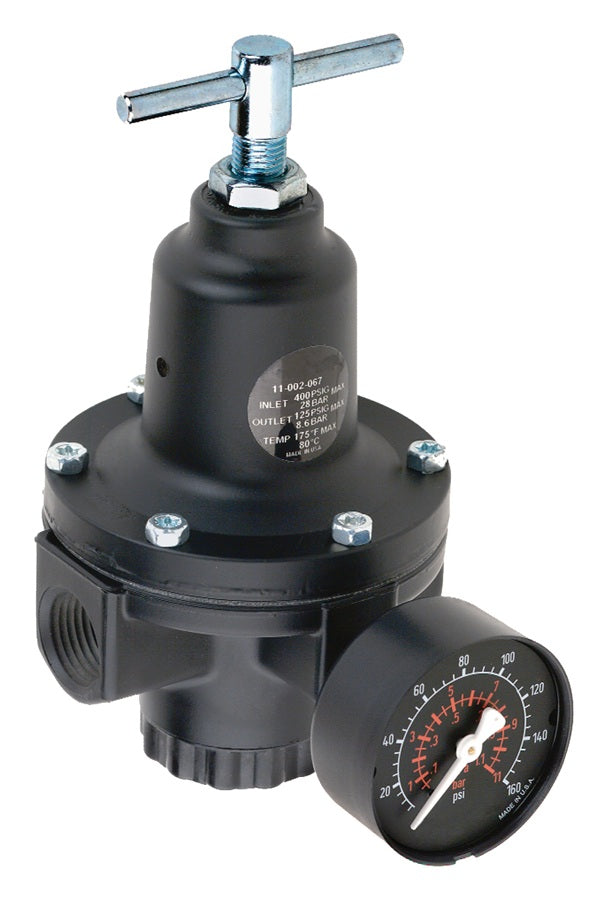

R11-037RG by Dixon Valve | R11 Series 1 | General T-Handle Regulator | 3/8" Port Size | 110 SCFM | With Gauge | 5-125 PSI Pressure Range

R11-037RG by Dixon Valve | R11 Series 1 | General T-Handle Regulator | 3/8" Port Size | 110 SCFM | With Gauge | 5-125 PSI Pressure Range

Save $173.82 Save $173.82
$434.55
$434.55 - $434.55
$434.55
$260.73
$260.73 - $260.73
$260.73

Dixon Valve
R11 Series 1 | General T-Handle Regulator

Pressure range: 5-125 PSI

For air service only.
Specifications for Variant SKU: R11-037RG Dixon
Series: R11 Series 1
Features:
  • T-handle adjustment.
  • Floating valve pin provides positive seating and dependability.
  • Large diaphragm provides quick response to flow demands and line pressure changes.
  • Balanced valve reduces inlet pressure variations on outlet pressure.
  • Supplied with GC620 gauge.
Specifications:
  • Pressure range: 5-125 PSI.
  • Inlet pressure: 400 PSI.
  • Maximum temperature: 175°F (80°C).
  • SCFM ratings at 150 PSIG inlet pressure.
Dimensions:
With Gauge
Part Number 		Port Size Flow (SCFM)
R11-013RG 1/4" 110 SCFM
R11-037RG 3/8" 110 SCFM
R11-061RG 1/2" 260 SCFM
