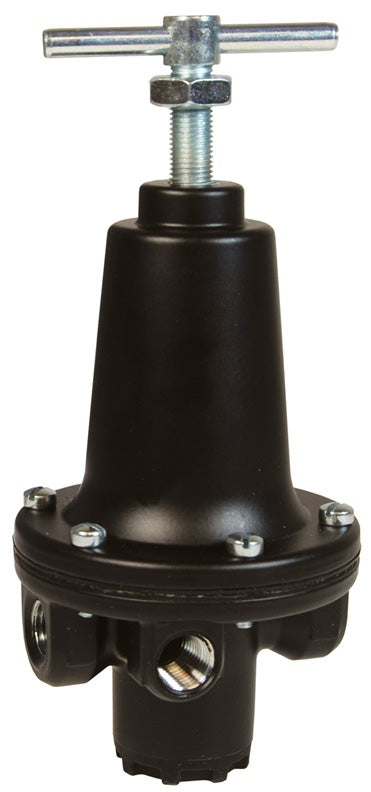

R119-04C Watts by Dixon Valve | R119-Series | Standard Regulator | 1/2" Size | 150 SCFM | without Gauge | 2 - 125 PSIG Pressure Range

Save $11.96

$141.72

$141.72 - $141.72

$141.72

$129.76

$129.76 - $129.76

$129.76

Dixon Valve
Watts | R119-Series | Standard Regulator

Pressure Range: 2 - 125 PSIG (.15 - 8.5 bar)

For air service only.

Quantity

Specifications for Variant SKU: R119-04C Dixon
Brand:	Watts
Series:	R119-Series

Features:
Zinc body Relieving type Diaphragm operated Spring adjustment mechanism T-handle design Brass bottom plug Aluminum spring cage Uses a GC230 gauge
Specifications:
Pressure range 2 - 125 PSIG (.15 - 8.5 bar) Inlet pressure: 300 PSIG (20.4 bar) maximum Temperature range: 40°F (4°C) to 120°F (49°C) SCFM ratings given at 100 PSIG inlet pressure. FRL's are designed for air service only, unless otherwise indicated.
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)
R119-02CG	R119-02C	1/4"	100 SCFM
R119-03CG	R119-03C	3/8"	110 SCFM
R119-04CG	R119-04C	1/2"	150 SCFM
