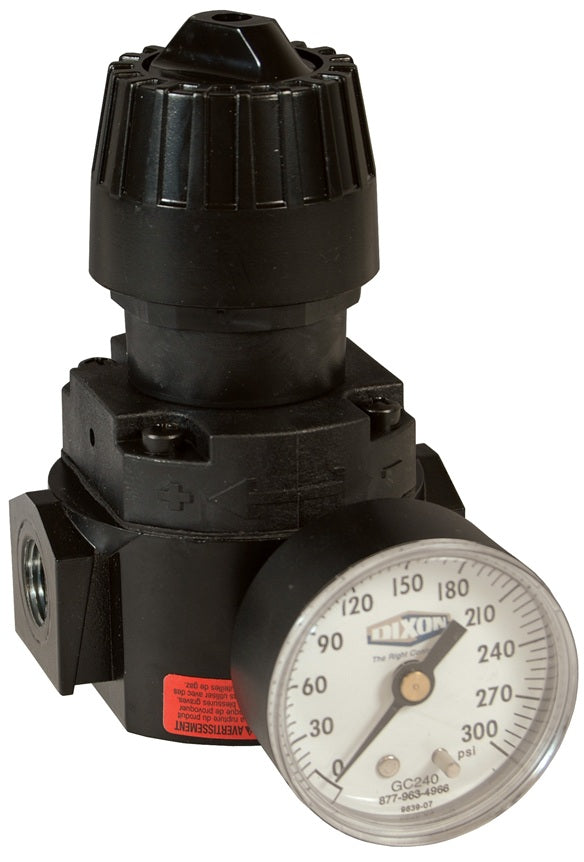

R16-04RG Wilkerson by Dixon Valve | R16-Series | Compact Regulator | 1/2" Size | 88.0 SCFM | with Gauge | 0-125 PSI Adjusting Range

Save $9.61

$113.73

$113.73 - $113.73

$113.73

$104.12

$104.12 - $104.12

$104.12

Dixon Valve
Wilkerson | R16-Series | Compact Regulator

0-125 PSI adjusting range.

Quantity

Specifications for Variant SKU: R16-04RG Dixon
Brand:	Wilkerson
Series:	R16-Series

Features:
0-125 PSI adjusting range. Self-relieving standard. Can be installed with the adjusting knob in any position. To increase regulated pressure, pull adjusting knob up and turn clockwise, to reduce pressure, turn knob counter clockwise. Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports. Models supplied without gauge use a GC230 gauge.
Specifications:
FRL's are designed for air service only, unless otherwise indicated. Maximum operating conditions: 300 PSIG (20.7 bar) and 32°F to 150°F (0°Cto 66°C) SCFM ratings at 100 PSIG inlet pressure.
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)
R16-02RG	R16-02R	1/4"	71.5 SCFM
R16-03RG	R16-03R	3/8"	80.5 SCFM
R16-04RG	R16-04R	1/2"	88.0 SCFM
