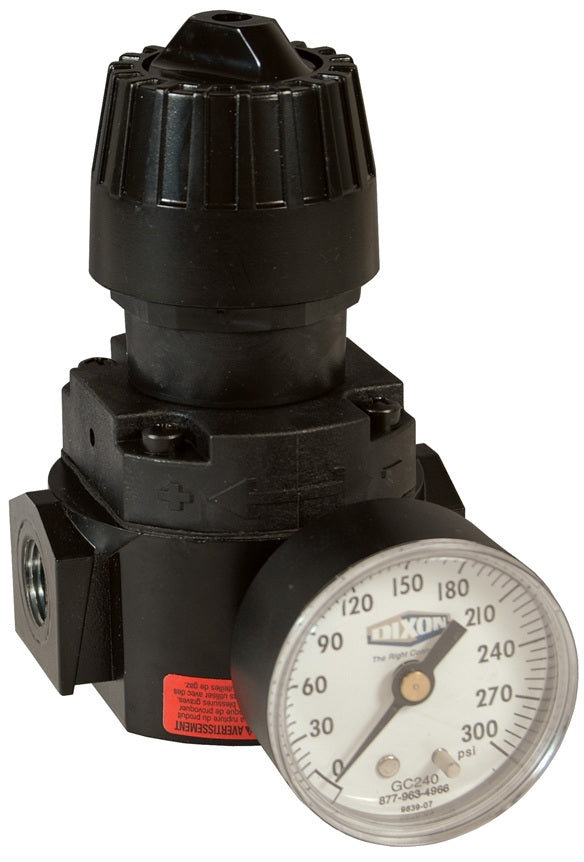

R16-04RHG Wilkerson by Dixon Valve | R16-Series | High Pressure Compact Regulator | 1/2" Size | 88.0 SCFM | with Gauge | 0-250 PSI Adjusting Range

Save $9.65

$114.30

$114.30 - $114.30

$114.30

$104.65

$104.65 - $104.65

$104.65

Dixon Valve
Wilkerson | R16-Series | High Pressure Compact Regulator

0-250 PSI adjusting range.

Quantity

Specifications for Variant SKU: R16-04RHG Dixon
Brand:	Wilkerson
Series:	R16-Series

Features:
0-250 PSI adjusting range. Self-relieving standard. Non-rising push/pull locking adjustment knob. Panel mount nut standard. Excellent flow characteristics. Can be installed with the adjusting knob in any position. Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports. Models supplied without gauge use a GC240 gauge.
Specifications:
FRL's are designed for air service only, unless otherwise indicated. Maximum operating conditions: 300 PSIG (20.7 bar) and 32°F to 150°F (0°C to 66°C) SCFM ratings at 100 PSIG inlet pressure.
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)
R16-02RHG	R16-02R	1/4"	71.5 SCFM
R16-03RHG	R16-03R	3/8"	80.5 SCFM
R16-04RHG	R16-04R	1/2"	88.0 SCFM
