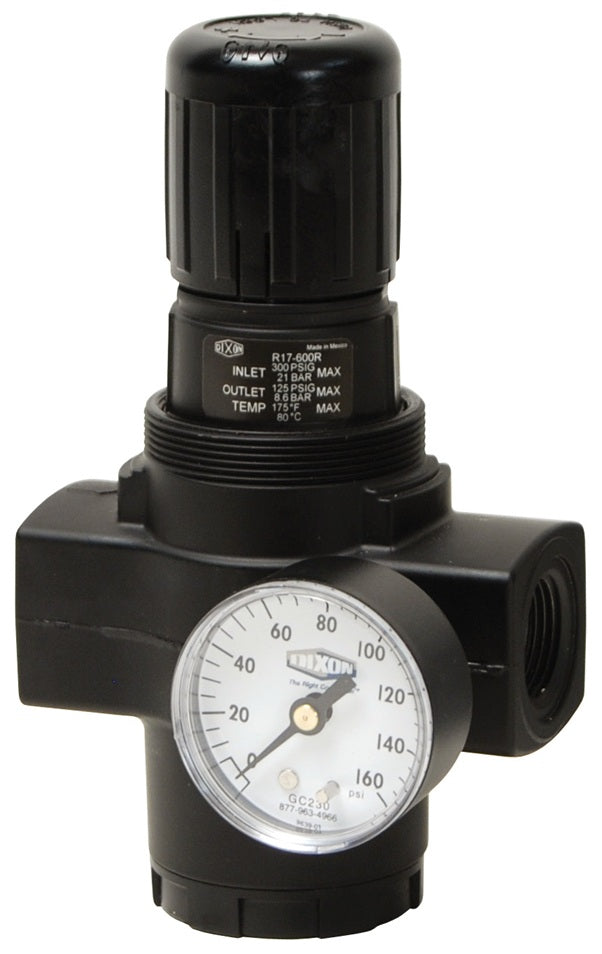

R17-A00RG by Dixon Valve | R17 Series 1 | Jumbo Regulator | 1-1/4" Port Size | 400 SCFM | with Gauge | 5-125 PSI Pressure Range

Save $22.20

$299.69

$299.69 - $299.69

$299.69

$277.49

$277.49 - $277.49

$277.49

Dixon Valve
R17 Series 1 | Jumbo Regulator

Pressure range: 5-125 PSI

In-line or modular installation.

For air service only.

Quantity

Specifications for Variant SKU: R17-A00RG Dixon
Series:	R17 Series 1

Features:
In-line or modular installation. Relieving type. Two full-flow 1/4" NPT gauge ports. RG models supplied with GC230 gauge.
Specifications:
Pressure range: 5-125 PSI. Inlet pressure: 300 PSI. Maximum temperature: 175°F (80°C). SCFM ratings at 150 PSIG inlet pressure.
Dimensions:

With Gauge Part Number	Without Gauge Part Number	Port Size	Flow (SCFM)
R17-600RG	R17-600R	3/4"	440 SCFM
R17-800RG	R17-800R	1"	480 SCFM
R17-A00RG	R17-A00R	1-1/4"	400 SCFM
R17-B00RG	R17-B00R	1-1/2"	440 SCFM
