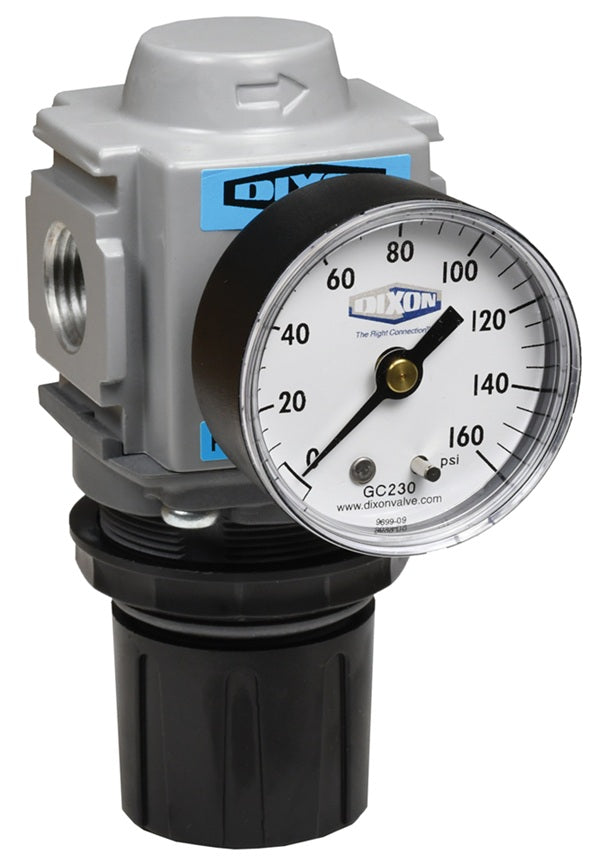

R18-02RG Wilkerson by Dixon Valve | R18-Series | Compact Regulator | 1/4" Size | 148 SCFM | with Gauge | 0-125 PSI Adjusting Range

Save $6.78

$80.15

$80.15 - $80.15

$80.15

$73.37

$73.37 - $73.37

$73.37

Dixon Valve
Wilkerson | R18-Series | Compact Regulators

0-125 PSI adjusting range.

Quantity

Specifications for Variant SKU: R18-02RG Dixon
Brand:	Wilkerson
Series:	R18-Series

Features:
Self-relieving standard. Can be installed with the adjusting knob in any position. To increase regulated pressure, pull adjusting knob up and turn clockwise, to reduce pressure, turn knob counter clockwise. Two 1/4" NPT gauge ports located on the front and rear faces of the body; ports may be used as additional regulated ports or for pressure gauges. Models supplied without gauge use a GC230 gauge.
Specifications:
FRL's are designed for air service only, unless otherwise indicated. Maximum operating conditions: 300 PSIG (20.7 bar) and -13°F to 150°F (-25°C to 65.5°C) SCFM ratings at 100 PSIG inlet pressure.
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)
R18-02RG	R18-02R	1/4"	148 SCFM
R18-03RG	R18-03R	3/8"	165 SCFM
R18-04RG	R18-04R	1/2"	165 SCFM
