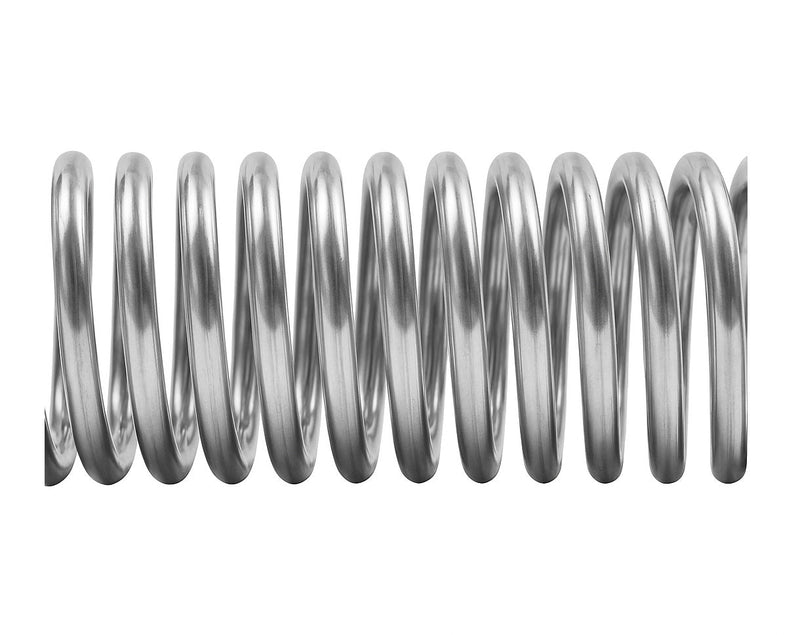

R1S0033-0294 Alfagomma by Kuriyama | SRS Series | Hose Protector | Coil Spring | 1.14" ID | Length: 13ft-1-1/2" | Steel

Save $23.99

$83.96

$83.96 - $83.96

$83.96

$59.97

$59.97 - $59.97

$59.97

Kuriyama of America Inc.
Alfagomma | Hose Protector | SRS Series | Coil Spring

ALFAGOMMA Steel Protective Coil Springs prolong the life of hose lines that are exposed to rugged operating conditions.

Specifications for Variant SKU: R1S0033-0294 Kuriyama
Brand:	Alfagomma
Series:	SRS Series
Material(s):	Steel

About:
Distributes the bending radii to avoid kinking in hose lines and protect the hose from excessive wear caused by sharp edges and abrasion and help protect the hose from deep cuts. The guards are constructed of steel and are plated to resist rust.
Features:
Protects hose cover and reinforcement from abrasion and accidental damage. 13ft-1 1/2" (4 m)

Part Number	DIN SAE ID		1SN R1AT FXP2 Alfatech 3000		2SN R2AT		ABT3K ABT4k		ABT5K ABT6k		Weight(lbs/coil)
Part Number	in	mm	DN	Size	DN	Size	DN	Size	DN	Size	Weight(lbs/coil)
R1S0033-0154	0.61"	15.5mm	6	-04	-	-	-	-	-	-	2.20 lbs
R1S0033-0174	0.67"	17.0mm	8	-05	6	-04	-	-	-	-	2.20 lbs
R1S0033-0194	0.75"	19.0mm	10	-06	8	-05	-	-	-	-04	2.37 lbs
R1S0033-0234	0.91"	23.0mm	12	-08	10	-06	10	-06	-	-06	3.12 lbs
R1S0033-0264	1.02"	26.0mm	16	-10	12	-08	12	-08	-	-08	5.27 lbs
R1S0033-0294	1.14"	29.0mm	20	-12	-	-	-	-10	-	-10	5.58 lbs
R1S0033-0344	1.34"	34.0mm	-	-	16 20	-10 -12	20	-12	20	-12	6.35 lbs
R1S0055-0414	1.61"	41.0mm	25	-16	25	-16	25	-16	25	-16	8.00 lbs
R1S0055-0484	1.89"	48.0mm	-	-	-	-	-	-20	-	-	8.61 lbs
R1S0055-0544	2.13"	54.0mm	32	-20	32	-20	-	-24	-	-	9.88 lbs
R1S0055-0604	2.36"	60.0mm	-	-	40	-24	-	-	40	-24	30.44 lbs
