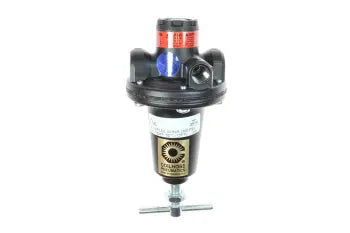

R340 by Coilhose | General Purpose Series Regulator | 3/4" Pipe Size | Zinc Die Cast

R340 by Coilhose | General Purpose Series Regulator | 3/4" Pipe Size | Zinc Die Cast

Save $19.69 Save $19.69
$177.20
$177.20 - $177.20
$177.20
$157.51
$157.51 - $157.51
$157.51
Coilhose Pneumatics - Filters, Regulators & Lubricators - General Purpose Series - Regulators
Specifications for Variant SKU: R340 Coilhose
Material(s): Brass, Zinc
Overview:
  • The General Purpose Series Regulators are ideal where pressure must be held constant over a wide variation of flow. Zinc die cast bodies offer excellent durability for most industrial applications.
Features:
  • Holds pressure constant over wide variations in flow.
  • 0 - 125 PSI pressure range.
  • Two 1/4 inch gauge ports.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure: 300 PSI Maximum Operating Temp.: 120° F
Materials: Adjusting Knob: Brass
Body: Zinc Die Cast

Model Pipe Size Gauge Max. Pressure Pressure Range
R140 1/4" No 300 PSI 0-125 PSI
R380 3/8" No 300 PSI 0-125 PSI
R120 1/2" No 300 PSI 0-125 PSI
R340 3/4" No 300 PSI 0-125 PSI
R100 1" No 300 PSI 0-125 PSI
R1120 1-1/2" No 300 PSI 0-125 PSI
R2000*** 2" No 300 PSI 0-125 PSI
***R2000 (2") regulator requires a pilot regulator to control the reduced pressure outlet. (8802G is recommended)
