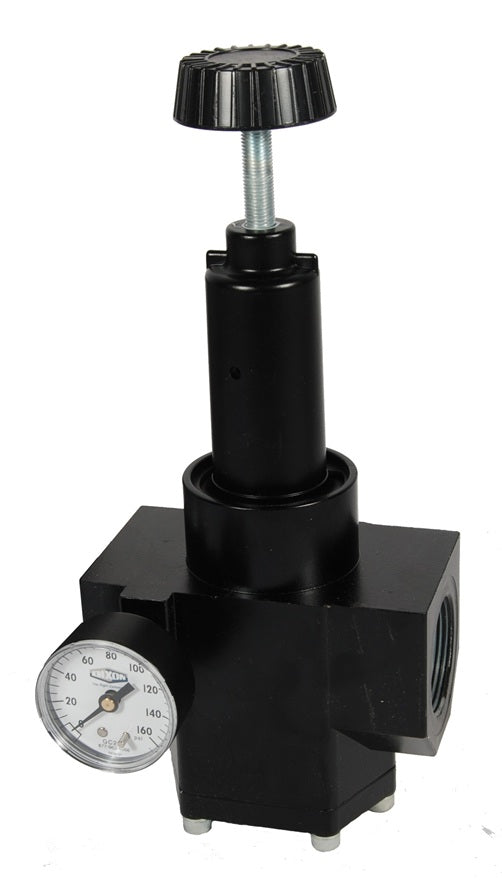

R40-0BRG Wilkerson by Dixon Valve | R40-Series | High Flow Regulator | 1-1/2" Size | 1200 SCFM | with Gauge | 0-125 PSI Adjusting Range

Save $42.86

$507.70

$507.70 - $507.70

$507.70

$464.84

$464.84 - $464.84

$464.84

Dixon Valve
Wilkerson | R40-Series | High Flow Regulators

0-125 PSI adjusting range.

Quantity

Specifications for Variant SKU: R40-0BRG Dixon
Brand:	Wilkerson
Series:	R40-Series

Features:
Self-relieving standard. Piston operated. Can be installed with the adjusting knob in any position. To increase regulated pressure, pull adjusting knob up and turn clockwise, to reduce pressure, turn knob counter clockwise. Two 1/4" NPT gauge ports standard on models without gauge; one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports. Models supplied without gauge use a GC230 gauge.
Specifications:
FRL's are designed for air service only, unless otherwise indicated. Maximum operating conditions: 300 PSIG (20.7 bar) and 32°F to 150°F (0°C to 66°C) SCFM ratings at 100 PSIG inlet pressure
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)
R40-0BRG	R40-0BR	1-1/2"	1200 SCFM
R40-0CRG	R40-0CR	2"	1200 SCFM
