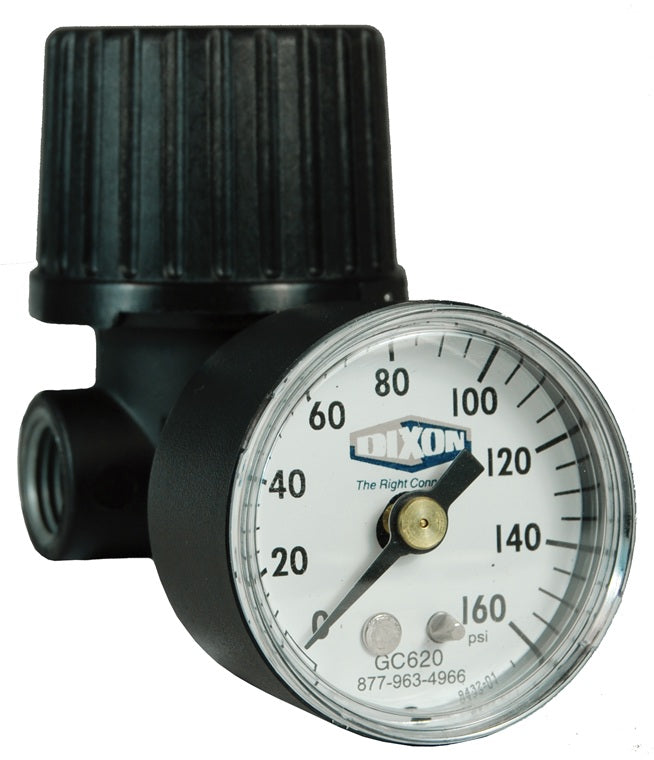

R46-200RG by Dixon Valve | Series 1 | Non-Repairable General Purpose Regulator | 1/4" Female NPT | with Gauge

R46-200RG by Dixon Valve | Series 1 | Non-Repairable General Purpose Regulator | 1/4" Female NPT | with Gauge

Save $3.46 Save $3.46
$53.43
$53.43 - $53.43
$53.43
$49.97
$49.97 - $49.97
$49.97

Dixon Valve
Series 1 | Non-Repairable General Purpose Regulator

For use with Compressed air only.

5 to 125 PSIG outlet pressure adjustment range.
Specifications for Variant SKU: R46-200RG Dixon
Series: Series 1
Features:
  • Relieving piston allows reduction of downstream pressure when system is dead-ended.
  • Left to right flow.
  • Compact design and lightweight construction.
  • Wrench flats for easy installation.
  • Compressed air only.
Specifications:
  • 5 to 125 PSIG outlet pressure adjustment range.
  • Reliable pressure regulation at air flows up to 13 SCFM
  • Temperature range: -30°F to 150°F (-34° to 66°C)
Part Number Description Female NPT
R46-200RG Supplied with a GC620 Gauge 1/4"
R46-200R No Gauge 1/4"
