R509-10X10 Couplamatic R5 Series Coupling - JIC 37° - Female Swivel - 1/2" Hose ID - 7/8x14 Thread Size

R509-10X10 by Couplamatic | R5 Series Coupling | 1/2" Hose ID x 7/8x14 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10

Save $7.32 Save $7.32
$65.84
$65.84 - $65.84
$65.84
$58.52
$58.52 - $58.52
$58.52

Couplamatic Systems Inc.
R5 Series - JIC 37° - Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: R509-10X10 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Female JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

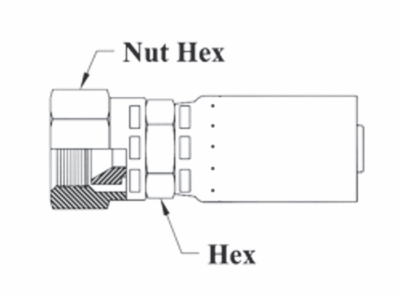

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead 069E
R509-4X4 3/16" 1/4" 7/16x20 9/16" 9/16" 06904E-604
R509-5X5 1/4" 5/16" 1/2x20 9/16" 5/8" 06905E-605
R509-6X6 5/16" 3/8" 9/16x18 11/16" 11/16" 06906E-606
R509-6X8 5/16" 1/2" 3/4x16 3/4" 7/8" 06906E-608
R509-8X8 13/32" 1/2" 3/4x16 3/4" 7/8" 06908E-608
R509-8X10 13/32" 5/8" 7/8x14 7/8" 1" 06908E-610
R509-10X8 1/2" 1/2" 3/4x16 7/8" 7/8" 06910E-608
R509-10X10 1/2" 5/8" 7/8x14 7/8" 1" 06910E-610
R509-12X12 5/8" 3/4" 1-1/16x12 1" 1-1/4" 06912E-612
R509-16X16 7/8" 1" 1-5/16x12 1-1/4" 1-1/2" 06916E-616
R509-20X20 1-1/8" 1-1/4" 1-5/8x12 1-5/8" 2" 06920E-620
R509-24X24 1-3/8" 1-1/2" 1-7/8x12 2" 2-1/4" 06924E-624
R509-32X32 1-13/16" 2" 2-1/2x12 2-1/2" 2-7/8" 06932E-632
