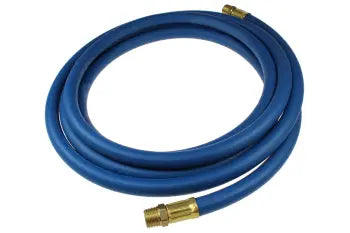

R51606N by Coilhose | Multipurpose Hose | 5/16" Hose ID | 9/16" Hose OD | 1/4" Male NPT Rigid | Blue | Neoprene | 6ft

R51606N by Coilhose | Multipurpose Hose | 5/16" Hose ID | 9/16" Hose OD | 1/4" Male NPT Rigid | Blue | Neoprene | 6ft

Save $2.83 Save $2.83
$25.50
$25.50 - $25.50
$25.50
$22.67
$22.67 - $22.67
$22.67
Coilhose Pneumatics - Straight Hose - Nitrile & Neoprene Heavy Duty/Multipurpose Hose
Specifications for Variant SKU: R51606N Coilhose
Hose Color(s): Blue
Material(s): Neoprene
Overview:
  • Heavy Duty Hose features black nitrile tube; a blue neoprene cover with reinforcement of multiple textile spirals. Designed for air and water, this hose has excellent flexibility. It can be used with reusable fitting or crimped on barb fitting. This hose is electrically non-conductive and adheres to a 4:1 Safety factor and RMA Class A - High Oil Resistance.
Notes:
  • Reel lengths shown are approximate and may vary.

Part No Fittings Hose ID Hose OD Temperature Range Working Pressure
at 70 deg. F		 Length Ferrule Crimper & Die Reference Color
R14006N 1/4" MPT Rigid 1/4" 1/2" -40°F to +212°F 200 PSI 6ft HF7323 CV500: CV500 Die Ref "D" Blue
R14M06N No Fittings 6ft HF7323 CV500: CV500 Die Ref "D" Blue
R14012N 1/4" MPT Rigid 12ft HF7323 CV500: CV500 Die Ref "D" Blue
R14025N 1/2" MPT Rigid 25ft HF7323 CV500: CV500 Die Ref "D" Blue
R14025RN 1/4" MPT Rigid, Reusable 25ft n/a n/a Blue
R14M25N No Fittings 25ft HF7323 CV500: CV500 Die Ref "D" Blue
R14050N 1/4" MPT Rigid 50ft HF7323 CV500: CV500 Die Ref "D" Blue
R14050RN 1/4" MPT Rigid, Reusable 25ft n/a n/a Blue
R14M50N No Fittings 50ft HF7323 CV500; CV500 Die Ref "D" Blue
R14100N 1/4" MPT Rigid 100ft HF7323 CV500: CV500 Die Ref "D" Blue
R14M100N No Fittings 100ft HF7323 CV500: CV500 Die Ref "D" Blue
R14800N No Fittings 800ft Reel HF7323 CV500: CV500 Die Ref "D" Blue

R51606N 1/4" MPT Rigid 5/16" 9/16" -40°F to +212°F 200 PSI 6ft HF7323 CV500: CV500 Die Ref "B" Blue
R516M06N No Fittings 6ft HF7326 CV500: CV500 Die Ref "B" Blue
R51612N 1/4" MPT Rigid 12ft HF7326 CV500: CV500 Die Ref "B" Blue
R51625N 1/4" MPT Rigid 25ft HF7326 CV500: CV500 Die Ref "B" Blue
R516M25N No Fittings 25ft HF7326 CV500: CV500 Die Ref "B" Blue
R51650N 1/4" MPT Rigid 50ft HF7326 CV500: CV500 Die Ref "B" Blue
R516M50N No Fittings 50ft HF7326 CV500: CV500 Die Ref "B" Blue
R516100N 1/4" MPT Rigid 100ft HF7326 CV500: CV500 Die Ref "B" Blue
R516M100N No Fittings 100ft HF7326 CV500: CV500 Die Ref "B" Blue
R516700N No Fittings 700ft Reel HF7326 CV500: CV500 Die Ref "B" Blue

R38006N 3/8" MPT Rigid 3/8" 5/8" -40°F to +212°F 200 PSI 6ft HF7328 CV500: CV500 Die Ref "A" Blue
R380064N 1/4" MPT Rigid 6ft HF7328 CV500: CV500 Die Ref "A" Blue
R38M06N No Fittings 6ft HF7328 CV500: CV500 Die Ref "A" Blue
R38012N 3/8" MPT Rigid 12ft HF7328 CV500: CV500 Die Ref "A" Blue
R380124N 1/4" MPT Rigid 12ft HF7328 CV500: CV500 Die Ref "A" Blue
R38025RN 3/8" MPT Rigid, Reusable 25ft n/a n/a Blue
R38M25N No Fittings 25ft HF7328 CV500: CV500 Die Ref "A" Blue
R38050N 3/8" MPT Rigid 50ft HF7328 CV500: CV500 Die Ref "A" Blue
R380504N 1/4" MPT Rigid 50ft HF7328 CV500: CV500 Die Ref "A" Blue
R38050RN 3/8" MPT Rigid, Reusable 50ft n/a n/a Blue
R38M50N No Fittings 50ft HF7328 CV500: CV500 Die Ref "A" Blue
R38100N 3/8" MPT Rigid 100ft HF7328 CV500: CV500 Die Ref "A" Blue
R381004N 1/4" MPT Rigid 100ft HF7328 CV500: CV500 Die Ref "A" Blue
R38M100N No Fittings 100ft HF7328 CV500: CV500 Die Ref "A" Blue
R38700N No Fittings 700ft Reel HF7328 CV500: CV500 Die Ref "A" Blue

R12006N 1/2" MPT Rigid 1/2" 7/8" -40°F to +165°F 200 PSI 6ft HF7333 CV501: CV501-DS6 Blue
R12M06N No Fittings 6ft HF7333 CV501: CV501-DS6 Blue
R12012N 1/2" MPT Rigid 12ft HF7333 CV501: CV501-DS6 Blue
R12025N 1/2" MPT Rigid 25ft HF7333 CV501: CV501-DS6 Blue
R12M25N No Fittings 25ft HF7333 CV501: CV501-DS6 Blue
R12050N 1/2" MPT Rigid 50ft HF7333 CV501: CV501-DS6 Blue
R12M50N No Fittings 50ft HF7333 CV501: CV501-DS6 Blue
R12100N 1/2" MPT Rigid 100ft HF7333 CV501: CV501-DS6 Blue
R12M100N No Fittings 100ft HF7333 CV501: CV501-DS6 Blue
R12500N No Fittings 550ft Reel HF7333 CV501: CV501-DS6 Blue

R34025N 3/4" MPT Rigid 3/4" 71/64" -40°F to +212°F 200 PSI 25ft HF7401A CV501: CV501-DS15 Blue
R34050N 3/4" MPT Rigid 50ft HF7401A CV501: CV501-DS15 Blue
R34100N 3/4" MPT Rigid 100ft HF7401A CV501: CV501-DS15 Blue
R34400N 3/4" MPT Rigid 400ft Reel HF7401A CV501: CV501-DS15 Blue
