R520-6x6 Couplamatic R5 Series Coupling - Inverted Male - 90° Bend - 5/16" Hose ID - 5/8x18 Thread Size

R520-6x6 by Couplamatic | R5 Series Coupling | 5/16" Hose ID x 5/8x18 Thread Size Inverted Male | 90° Elbow | Trivalent Zinc Plating | Pack of 10

Save $10.52 Save $10.52
$94.66
$94.66 - $94.66
$94.66
$84.14
$84.14 - $84.14
$84.14

Couplamatic Systems Inc.
R5 Series - Inverted Male - 90° Bend

Package Quantity: 10 EA

Specifications for Variant SKU: R520-6x6 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male Inverted Flare, 5/16in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

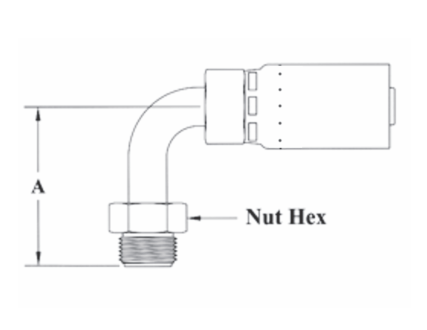

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex
R520-4x4 3/16" 7/16x24" 1/4" 1.23" 7/16"
R520-5x5 1/4" 1/2x20" 5/16" 1.38" 1/2"
R520-6x6 5/16" 5/8x18" 3/8" 1.63" 5/8"
R520-8x8 13/32" 3/4x18" 1/2" 2.20" 3/4"
