R525-8X8 Couplamatic R5 Series Coupling - JIC/SAE Dual Seat - 45° Female Swivel - 13/32" Hose ID - 3/4x16 Thread Size

R525-8X8 by Couplamatic | R5 Series Coupling | 13/32" Hose ID x 3/4x16 Thread Size JIC/SAE Dual Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Pack of 10

Save $12.93 Save $12.93
$116.34
$116.34 - $116.34
$116.34
$103.41
$103.41 - $103.41
$103.41

Couplamatic Systems Inc.
R5 Series - JIC/SAE Dual Seat - 45° Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: R525-8X8 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Female JIC, 13/32in Hose Barb, 1/2in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

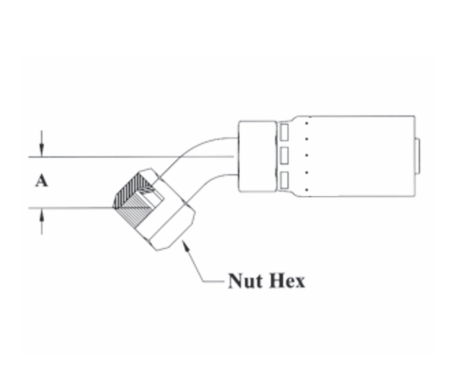

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead 069E
R525-4X4 3/16" 1/4" 7/16x20 0.47" 9/16" 06904E-684
R525-5X5 1/4" 5/16" 1/2x20 0.53" 5/8" 06905E-685
R525-6X6* 5/16" 3/8" 9/16x18 0.59" 11/16" 06906E-686
R525-8X8 13/32" 1/2" 3/4x16 0.71" 7/8" 06908E-688
R525-10X10 1/2" 5/8" 7/8x14 0.68" 1" 06910E-690
R525-12X12* 5/8" 3/4" 1-1/16x12 1.12" 1-1/4" 06912E-692
R525-16X16* 7/8" 1" 1-5/16x12 1.15" 1-1/2" 06916E-696
R525-20X20 1-1/8" 1-1/4" 1-5/8x12 1.69" 2" -

*JIC Seat & Thread Only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
