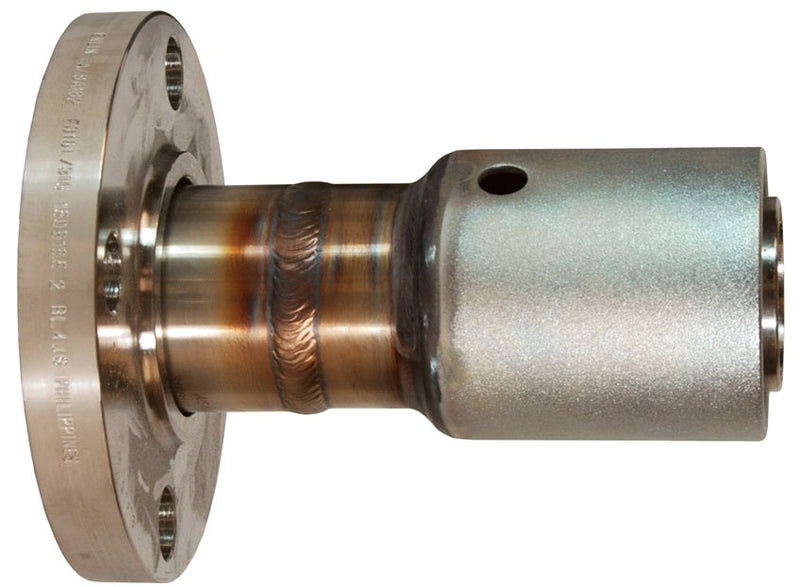

R64P1LJR15 by Dixon Valve | Holedall® External Swage | Floating Flange Assembly | 4" Hose ID | Hose OD: From 4-40/64" to 4-44/64" | 316 Stainless Steel

Save $534.61

$1,336.52

$1,336.52 - $1,336.52

$1,336.52

$801.91

$801.91 - $801.91

$801.91

Dixon Valve
Holedall® Special External Swage Stem | Floating Flange Assembly x Hose Barb

Quantity

Specifications for Variant SKU: R64P1LJR15 Dixon
Brand:	Holedall
Shape (Orientation):	Straight
Ends Configuration:	4in 150# Flange, 4in Hose Barb
Material(s):	316 Stainless Steel, Carbon Steel

Features:
150# ASA flange drilling. The Holedall coupling provides long-lasting efficiency and safety. The coupling system requires no bolts and results in a clean coupling with no protrusions.
How It Works:
The hydraulic swaging of the coupling to the hose is accomplished by pushing the ferrule through a die which reduces the ferrule OD, thus providing a 360° uninterrupted compression band around the hose. A hydraulic ram is the only piece of machinery necessary to accomplish the coupling. Couplings can be swaged or crimped.
Safety Notes:
Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products. Do not use a wrench or vice on ferrule. Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure. Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage. Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that. particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules. Consult Dixon if you do not have an updated Die and Ferrule Recommendation Guide. Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure. Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or contact Dixon for material compatibility. For applications other than the ones list, please consult Dixon.

Carbon Steel Part Number	316 Stainless Steel Part Number	Hose ID	Hose OD Range
Carbon Steel Part Number	316 Stainless Steel Part Number	Hose ID	From	To
-	R32P1LJR15	2"	2-28/64"	2-40/64"
-	R32P2LJR15	2"	2-41/64"	2-48/64"
-	R32P3LJR15	2"	2-49/64"	2-56/64"
48P1LJ15	R48P1LJR15	3"	3-30/64"	3-40/64"
48P2LJ15	R48P2LJR15	3"	3-41/64"	3-48/64"
48P3LJ15	R48P3LJR15	3"	3-49/64"	3-56/64"
64P1LJ15	R64P1LJR15	4"	4-40/64"	4-44/64"
64P2LJ15	R64P2LJR15	4"	4-45/64"	4-52/64"
64P3LJ15	R64P3LJR15	4"	4-53/64"	4-60/64"
96P2LJ15	-	6"	7-5/64"	7-12/64"
96P3LJ15	-	6"	7-13/64"	7-20/64"
128P1LJ15	-	8"	9-20/64"	9-24/64"
