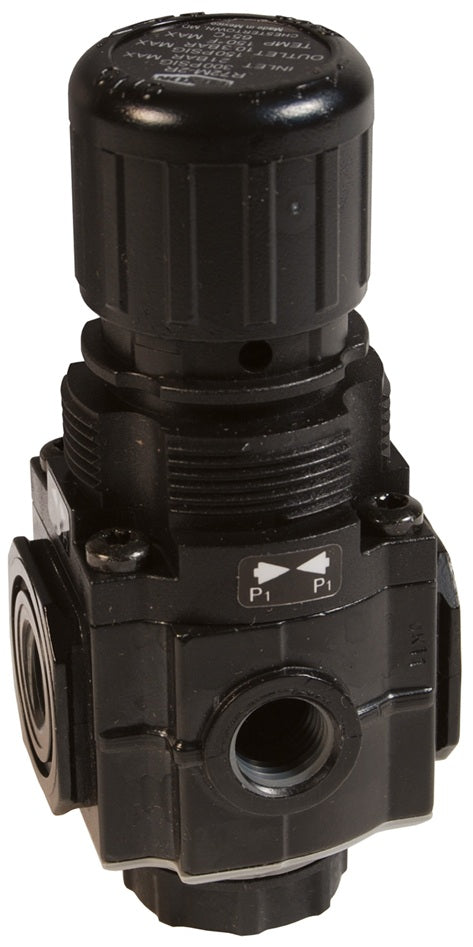

R72M-2R by Dixon Valve | R72M Series 1 | Manifold Regulator | 1/4" Port Size | 83 SCFM | without Gauge | 5-150 PSI Pressure Range

R72M-2R by Dixon Valve | R72M Series 1 | Manifold Regulator | 1/4" Port Size | 83 SCFM | without Gauge | 5-150 PSI Pressure Range

Save $8.82 Save $8.82
$116.10
$116.10 - $116.10
$116.10
$107.28
$107.28 - $107.28
$107.28

Dixon Valve
R72M Series 1 | Manifold Regulator

Manifold up to six regulators on a single air supply.

Pressure range: 5-125 PSI

For air service only.
Specifications for Variant SKU: R72M-2R Dixon
Series: R72M Series 1
Features:
  • Manifold up to six regulators on a single air supply.
  • Design allows in-line installation with hex nipple or modular installation with 72 series FRL accessories.
  • RG models supplied with GC620 gauge.
Specifications:
  • Pressure range: 5-150 PSI
  • Inlet pressure: 300 PSI
  • Maximum temperature: 150°F (66°C)
  • SCFM ratings at 150 PSIG inlet pressure.
Dimensions:
With Gauge
Part Number 		Without Gauge
Part Number 		Port Size Flow (SCFM)
R72M-2RG R72M-2R 1/4" 83 SCFM
R72M-3RG R72M-3R 3/8" 83 SCFM
